Gene Bio-Application Ltd. (GeBA) develops and markets unique tools with research applications in molecular biology and medicine.

Founded in May of 1999 by molecular biology researchers seeking to create solutions to needs they identified in their own research practice, GeBA has since established a range of products based on a profound commitment to innovation, quality and reliability.
The product range continues to expand, targeting areas of bio-molecular research requiring rapid, reliable, and cost effective solutions. Products are developed, industrialized, and manufactured in GeBA Laboratories, and marketed worldwide by a network of distributors and OEM agreements.

View All Products

TOOLS FOR RESEARCHERS BY RESEARCHERS

GeBA has been Designing and Manufacturing Innovative and Unique Tools for Bio-Molecular Research since 1999

Products

GEBAFLEX-TUBE
GEBAFLEX-TUBE PRODUCTS
GEBAGEL
GEBAGEL PRODUCTS

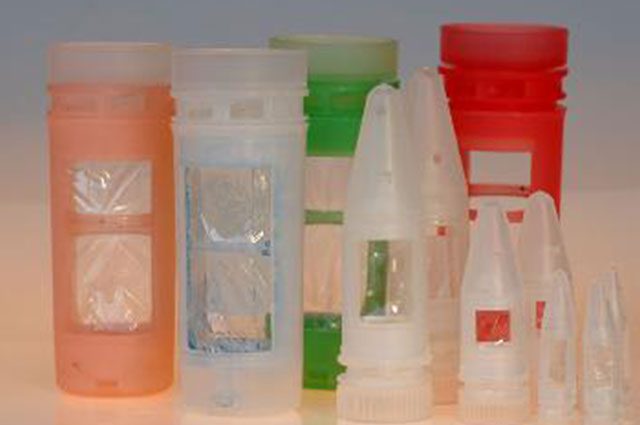

GEBAFLEX-TUBE
Numerous applications, one standard of excellence.

THE ONLY DIALYSIS, BUFFER EXCHANGE AND ELECTRO-ELUTION TOOL YOU’LL EVER NEED

The most convenient sample loading and unloading in the market.

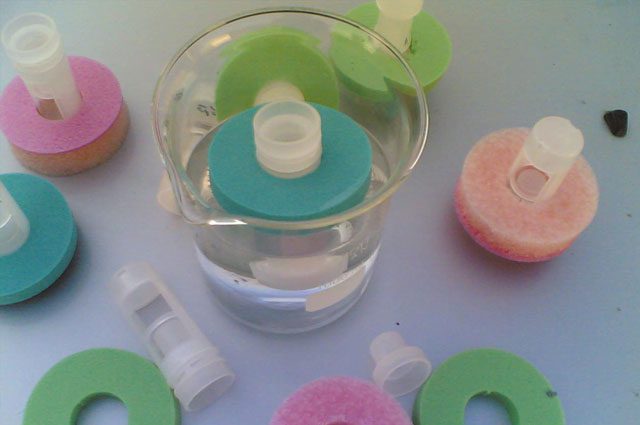

Floating rack and supporting trays make high throughput easy.

Low cost single use, single step unit; no cleaning or autoclaving.

70% recovery of protein & over 90% recovery of DNA / RNA from PAGE

Available in a variety of volume and MWCO options.

Guaranteed Ultra Clean; EDTA treated and free of any contaminants.

Now available with an Oligo PAGE purification protocol yielding over 90% Oligo recovery rate from PAGE



* Please note that not all MWCO are available in each size of GeBAflex-tube.
See list of available GeBAflex Tube Kits below.

GeBAflex Tube Products

MINI GeBAflex-tube

MWCO Units Qty. Catalog Num.
6,000-8,000 10 D070-6-10
6,000-8,000 30 D070-6-30
6,000-8,000 50 D070-6-50
6,000-8,000 100 D070-6-100
12,000-14,000 10 D070-12-10
12,000-14,000 30 D070-12-30
12,000-14,000 50 D070-12-50
12,000-14,000 100 D070-12-100
25,000 5 D070-25-5

MIDI GeBAflex-tube

MWCO Units Qty. Catalog Num.
1,000 5 D015-1-5
3,500 10 D010
3,500 30 D012
3,500 50 D010-50
3,500 100 D010-100
6,000-8,000 10 D020
6,000-8,000 30 D022
6,000-8,000 50 D020-50
6,000-8,000 100 D020-100

MAXI GeBAflex-tube

MWCO Units Qty. Catalog Num.
3,500 5 D030
3,500 15 D035
3,500 50 D030-50
3,500 100 D030-100
6,000-8,000 5 D040
6,000-8,000 15 D045
6,800-8,000 50 D040-50
6,000-8,000 100 D040-100
12,000-14,000 5 D050
12,000-14,000 15 D055
12,000-14,000 50 D050-50
12,000-14,000 100 D050-100
25,000 5 D060-25-5
50,000 5 D060-50-5

MEGA GeBAflex-tube

MWCO Volume Units Qty. Catalog Num.
1,000 10mL 5 D080-1/10-5
1,000 15mL 5 D080-1/15-5
1,000 20mL 5 D080-1/20-5
3,500 10mL 10 D080-3,5/10-10
3,500 15mL 10 D080-3,5/15-10
3,500 20mL 10 D080-3,5/20-10
6,000-8,000 10mL 10 D080-6/10-10
6,000-8,000 15mL 10 D080-6/15-10
6,000-8,000 20mL 10 D080-6/20-10
12,000-14,000 10mL 10 D080-12/10-10
12,000-14,000 15mL 10 D080-12/15-10
12,000-14,000 20mL 10 D080-12/20-10

Specifications

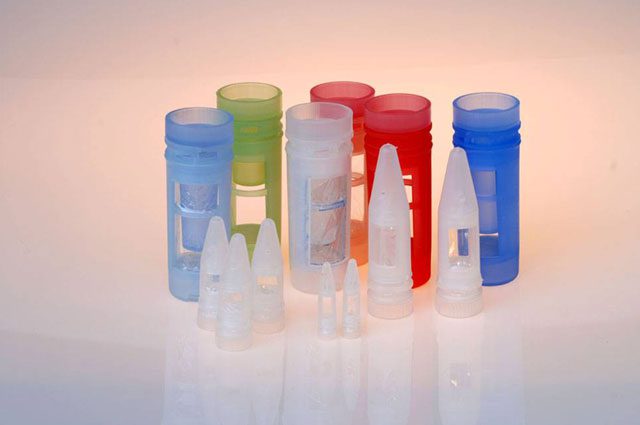

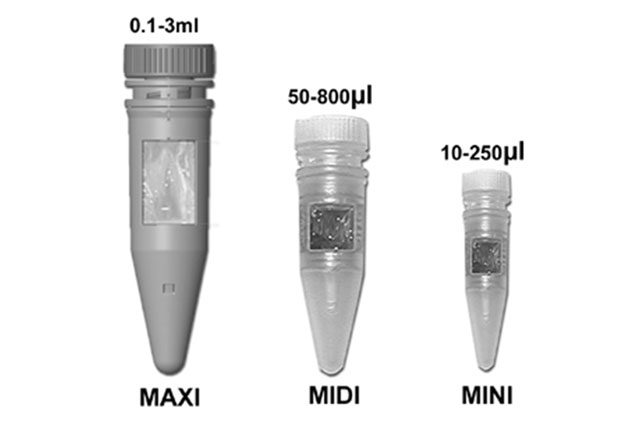

Volume Sizes

Mini: 10-250 μl
Midi: 50-800 μl
Maxi: 0.1-3 ml
Mega: 3-20 ml

MWCO

Wide range of options
1,000-50,000 MWCO

High Throughput Efficiency

Single floating rack in a single beaker can process up to

63 Mini / 35 Midi / 20 Maxi GeBAflex-tubes

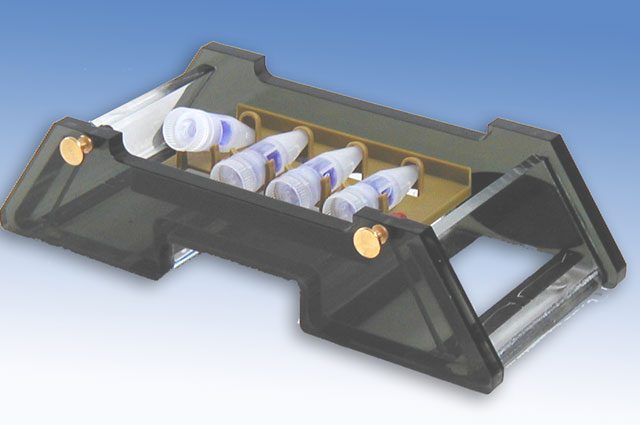

​Electro Elution of up to 100 samples simultanioulsy

Recovery Rate

Exceptionally High Molecule Recovery Yield:
​
DNA or RNA from agarose gel: 80-90%

Oligo, DNA or RNA from PAGE: 80-90%

Protein from SDS-PAGE: 50-70%

Guaranteed Ultra Clean

EDTA treated and free of RNase, DNase, PCR product, sulfur or heavy metal contaminants.

Sterile conditions available for custom orders.

Extended Shelf Life

24 month shelf life at room temperature

(for most models, see storage conditions for more details).

Ease of Use

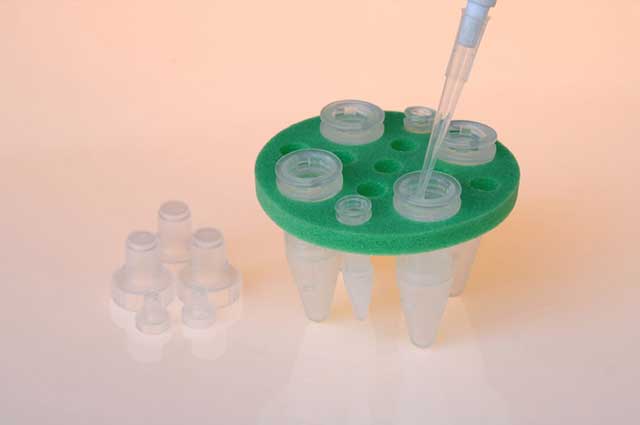

secure and convenient loading & unloading with standard pipette tip, surpasses any other product in the market!

Single step, single use and low cost.

Reduced human error and contamination – no need for cleaning and autoclaving.

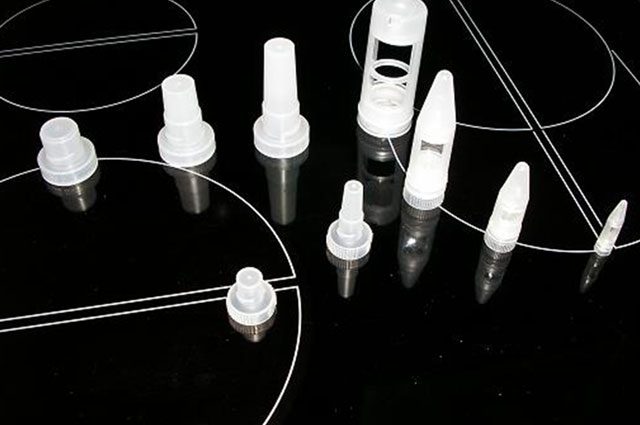

GeBAflex-tube caps option improves dialysis effect

by maximizing liquid surface membrane contact.

Applications

Dialysis & Buffer Exchange

High throughput Dialysis or buffer exchange

peptide dialysis small as 10 amino acids

pH and buffer adjustment of sample solution, protein extract or cell extract

Large scale protein dialysis such as antibodies and recombinant protein purification

Sample concentration

virus particles purification

Removal of contaminating micro molecules

Tissue culture extract purification

Removal of salts, surfactants, ethidiumbromide, urea, solvents and detergents

Molecule Extraction

Preparation of protein samples for MALDI-MS.

Complex formation studies (protein-protein, protein-DNA and protein-RNA)

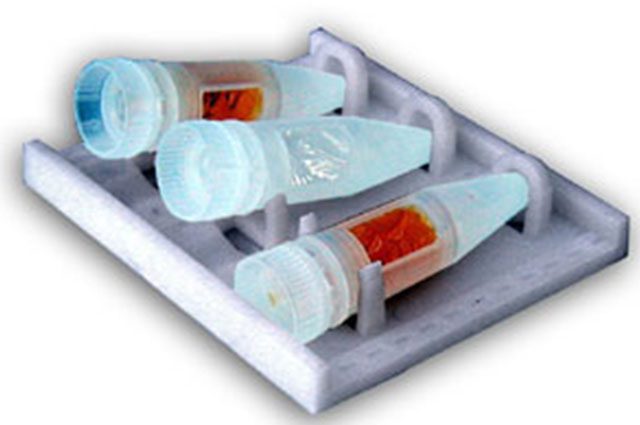

​Extraction of proteins, RNA, DNA or oligos (as small as 15 nt up to over 10kb) from polyacrylamide, agrose or any gel matrix in any running buffer.

Extraction of protein-protein, DNA-protein or RNA-protein complexes.

2D gel dots extraction.

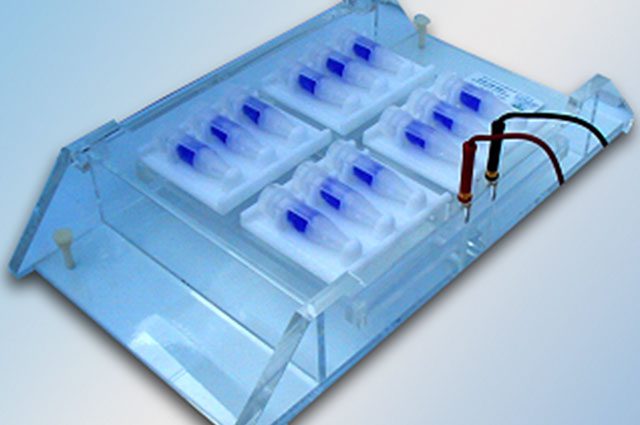

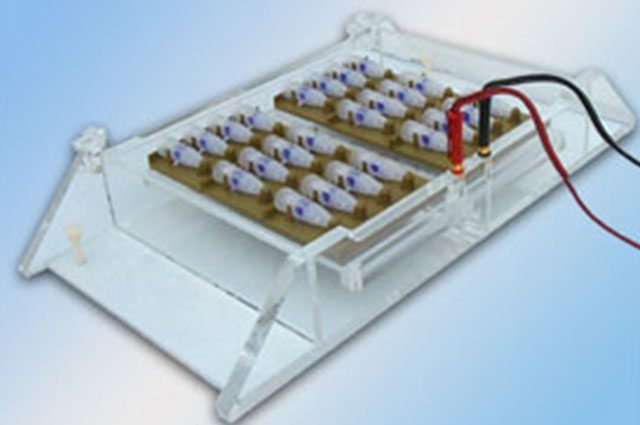

High throughput Electro elution from 1D and 2D gel (supporting tray fits most horizontal electrophoresis units on the market).

Additional Information

Storage Conditions

GeBAflex-tube kit must be stored in a dry place at room temperature (15-25°C). Under these conditions, GeBAflex-tube kit can be stored for up to 24 months without any deterioration in performance and quality. For longer storage time, it is recommended that the GeBAflex-tube kit be stored in a cool place (refrigerator), at relative humidity of 35% at least. GeBAflex Tubes with MWCO of 1,000 / 25,000 / 50,000 are delivered wet and must be stored at 4°C.

Product Use Limitations

GeBAflex-tube kit is developed, designed and sold for research purposes only. It is not to be used for human diagnostic purposes or drug production nor for producing any substance intended to be administered to humans unless expressly cleared for that purpose by the Food and Drug Administration in the USA or the appropriate regulatory authorities in the country of use. All due care and attention should be exercised in the handling of materials described in this text.

Quality Control

The performance of GeBAflex-tube kit is regularly monitored. GeBAflex-tube kit is tested by using it for extraction of Proteins, DNA and RNA fragments of various sizes from either agarose or polyacrylamide gel. GeBAflex-tube kit is tested also for simple dialysis of salts or buffer exchange. The quality of the isolated Protein, DNA and RNA fragments or of the sample after dialysis is checked by several assays commonly used for proteins, nucleic acids and dialysis. Determining the recovery from a specific amount of loaded sample tests the quality and efficiency of the GeBAflex-tube membrane.

GEBAGEL
The World's Only Horizontal Pre-Cast Polyacrylamide Mini-Gel System

METICULOUSLY DESIGNED TO BE THE MOST CONVENIENT SYSTEM ON THE MARKET WHILE PROVIDING EXCEPTIONAL QUALITY RESULTS

Ideal for protein (native/denatured).
No assembly, buffer leakage or cross contamination.
No need for adapters or special loading tips.
Sharper bands and totally smile free separation provide clearer more accurate results.
12 month shelf life guaranteed.
Neutral pH and SDS Free.

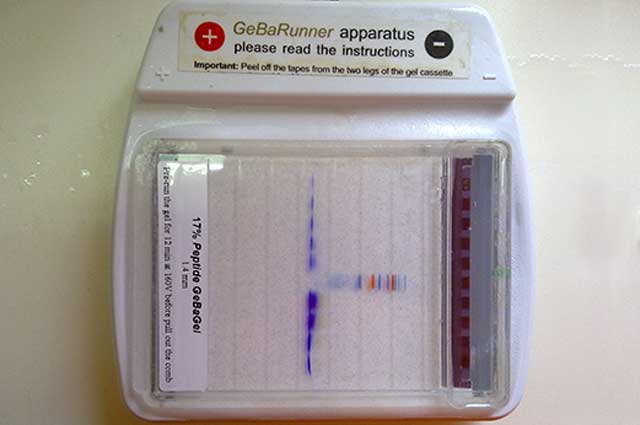

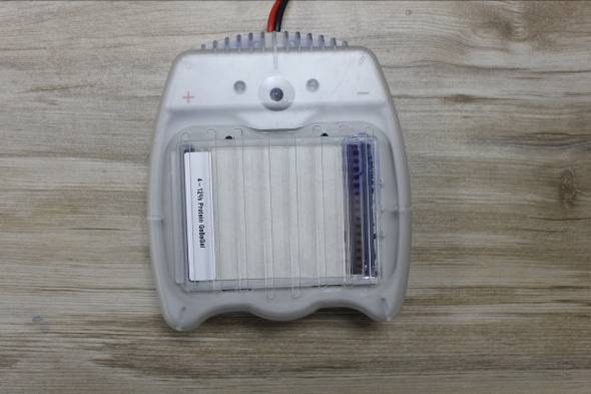

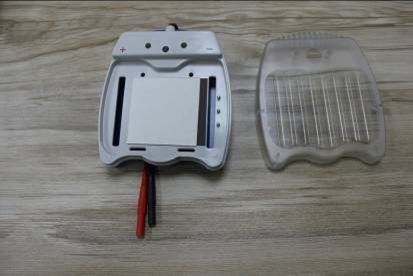

GeBaRunner Appratus

GeBaGel Products

GeBaGel, 10 wells

AA Gel % Units Qty. Catalog Num
10% 2 10G-0010-2
10% 10 10G-0010-10
12% 2 10G-0012-2
12% 10 10G-0012-10
4-12% 2 10G-0412-2
4-12% 10 10G-0412-10
8-16% 2 10G-0816-2
8-16% 10 10G-0816-10
4-20% 2 10G-0420-2
4-20% 10 10G-0420-10

GeBaGel, 15 wells

AA Gel % Units Qty. Catalog Num
10% 2 15G-0010-2
10% 10 15G-0010-10
12% 2 15G-0012-2
12% 10 15G-0012-10
4-12% 2 15G-0412-2
4-12% 10 15G-0412-10
8-16% 2 15G-0816-2
8-16% 10 15G-0816-10
4-20% 2 15G-0420-2
4-20% 10 15G-0420-10

GeBaGel, 2+1 wells

AA Gel % Units Qty. Catalog Num
10% 2 3G-0010-2
10% 10 3G-0010-10
12% 2 3G-0012-2
12% 10 3G-0012-10
4-12% 2 3G-0412-2
4-12% 10 3G-0412-10
8-16% 2 3G-0816-2
8-16% 10 3G-0816-10
4-20% 2 3G-0420-2
4-20% 10 3G-0420-10

GeBaGel, 1+1 wells

AA Gel % Units Qty. Catalog Num
10% 2 2G-0010-2
10% 10 2G-0010-10
12% 2 2G-0012-2
12% 10 2G-0012-10
4-12% 2 2G-0412-2
4-12% 10 2G-0412-10
8-16% 2 2G-0816-2
8-16% 10 2G-0816-10
4-20% 2 2G-0420-2
4-20% 10 2G-0420-10

Specifications

Gel Concentrations

10%
12%
4-12%
8-16%
4-20%

Well Configurations

1+1 (700 µl/well)
1+2 (200 µl/well)
​10 (40 µl/well)
​15 (25 µl/well)

Ease of Use

Horizontal operation eliminates the nuisance and time consumption of assembly and buffer spills from the top to bottom buffer chamber.

GeBA Runner minimizes heat generated inside the gel while ensuring its equal distribution.

To increase the security of the system, the GeBA Runner includes a built in proximity sensor, located in the protective safety cover, which shuts down power to the unit if the cover is removed.

No adapters are required for use and most power supply units can power multiple GeBA Runners simultaneously (overall current supplied must be limited to 160V).

60 minute run time.

Significant savings of running buffer
(the system uses a total of 180 ml).
​Standard membrane transfer buffer.

Reinforced sample wells eliminate damage when removing comb and loading samples.
Robust sample well dividers won’t deform or fall over.

Elimination of cross contamination of sample wells.

Effortless cassette opening.

Foolproof well access.

Applications

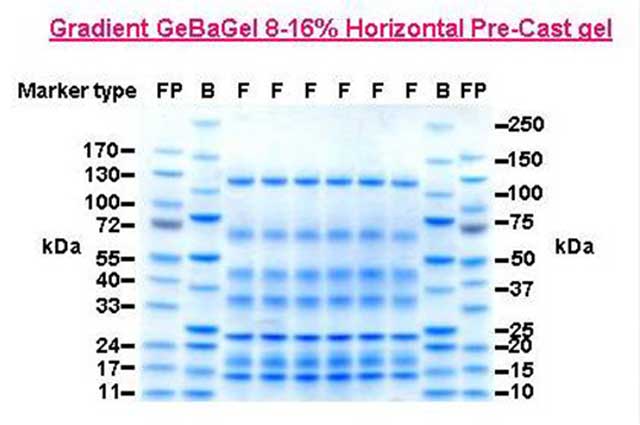

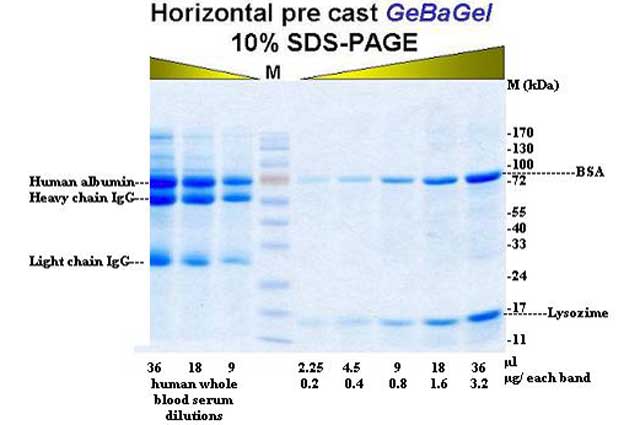

High Quality Separation Analysis

Analysis of Proteins (under both native and denatured electrophoresis conditions), with the same standard GeBaGel and Tris-Glycine running buffer.

Dependable, Sharp Bands and Smile Free Separation for outstanding clarity and results across all analyses

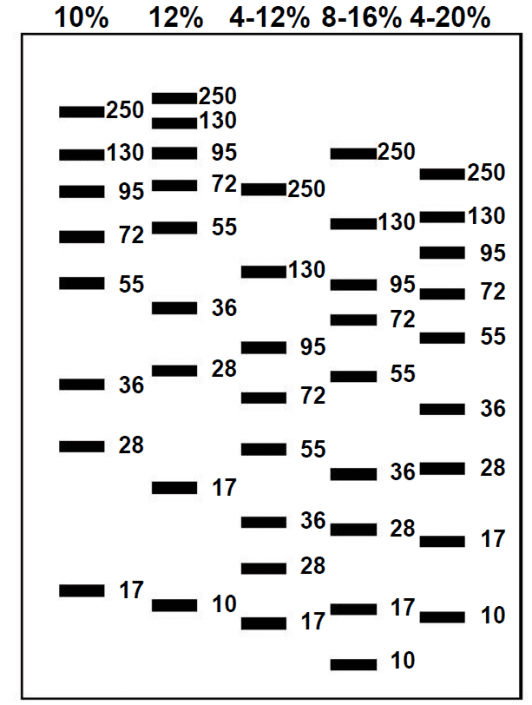

Separation Range

GeBaRunner Dimensions: 165 X 147 X 45 mm (L x W x H)

Maximum Voltage: 200 V DC

Operating Temperature: 2°C – 40°C

Maximum Power: 20 W

Maximum Current: 100 mA

Degree of Protection: IPX5

Additional Information

Storage Conditions​

GeBA Gels are shipped at ambient temparature must be stored in a dry place at 4°C. Under these conditions, GeBA Gel can be stored for up to 12 months from the production date without any deterioration in performance and quality. Do not Freeze GeBA Gels.

Product Use Limitations​

GeBA Gel and the GeBA Runner have been developed, designed and sold for in-vitro research purposes only, namely performance of PAGE. It is not to be used for human diagnostic purposes or clinical procedures. Gloves must be worn at all times when handling GeBA Gel; exercise all due care and attention in the handling of materials described in this text.

Quality Control​

The performance of GeBAflex-tube kit is regularly monitored. GeBAflex-tube kit is tested by using it for extraction of Proteins, DNA and RNA fragments of various sizes from either agarose or polyacrylamide gel. GeBAflex-tube kit is tested also for simple dialysis of salts or buffer exchange. The quality of the isolated Protein, DNA and RNA fragments or of the sample after dialysis is checked by several assays commonly used for proteins, nucleic acids and dialysis. Determining the recovery from a specific amount of loaded sample tests the quality and efficiency of the GeBAflex-tube membrane.
