IBL (Immuno-Biologicals Laboratories Co Ltd)

Product Categories

Primary Antibodies

Secondary Antibodies

ELISA Kits

ELISA Buffers

ELISA Control Sets

Made in Japan Quality

IBL has maintained ISO13485 certification since 2009. All our antibodies and ELISA products are manufactured and controlled in-house at our head office and main laboratory located in Japan. We are proud and confident in the quality of our products and services.

IBL carefully conducts all processes of antibody development with the utmost attention to the process of selecting sequence, immunization, screening, and cloning to find the best antibodies for a particular purpose. Our mission is to consistently supply quality products that are both highly specific and sensitive.

Research Areas

Aging/ Neurodegenerative

IBL started to focus on research and development in Alzheimer’s disease (AD) around 1995. Since that time we have been lining up ELISA and antibody products that detect important proteins in relation to “the amyloid hypothesis” such as Amyloid-beta Precursor Protein (APP), Amyloidβ and Tau protein. IBL has been manufacturing and supplying these products for over 20 years.

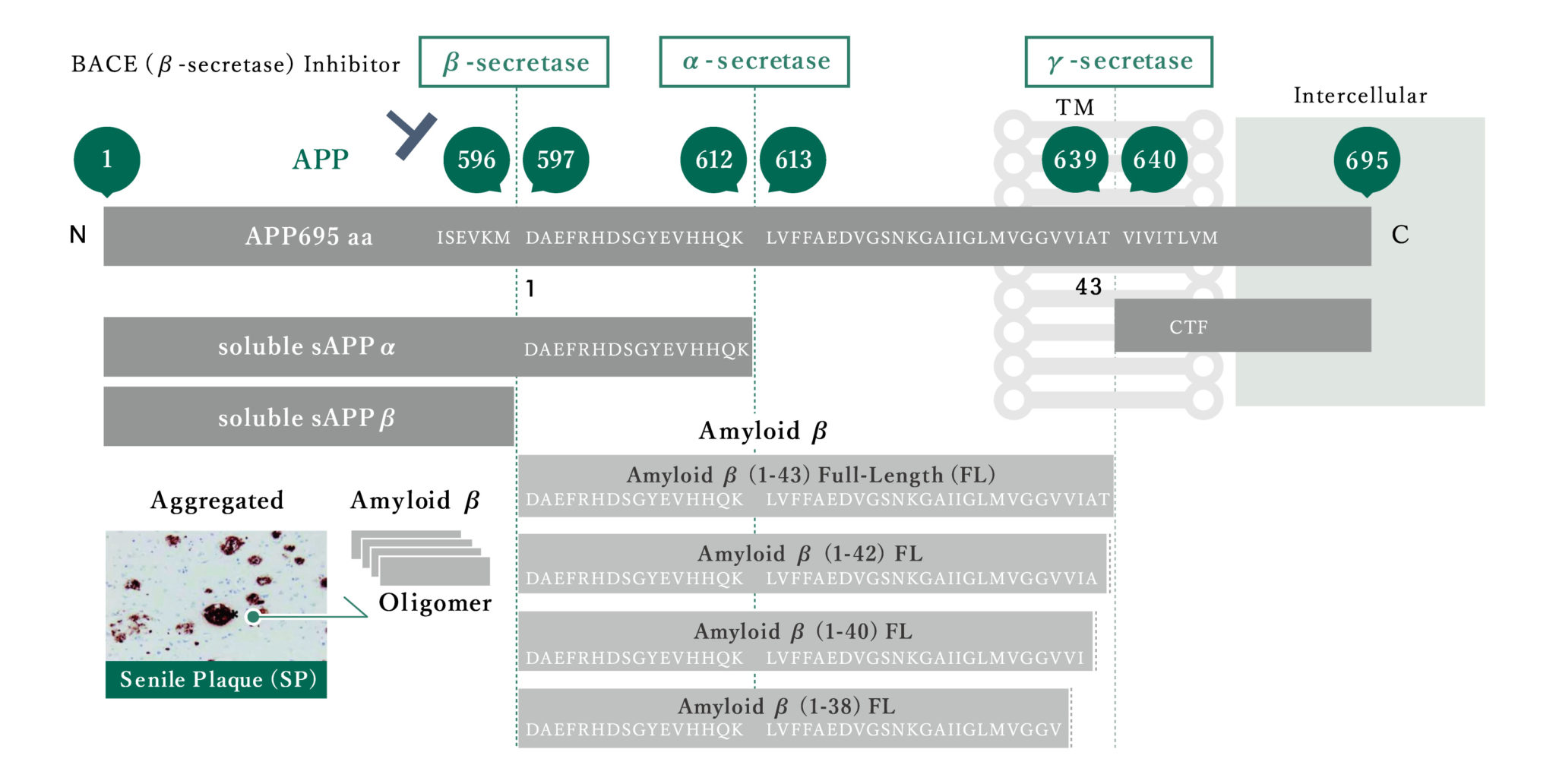

APP / Amyloid β

APP695 aa – Transmembrane (TM) protein / mainly expressed in neuron cell

Amyloid β

#27717 h_Aβ (1-38) FL
#27718 h_Aβ (1-40) FL
#27719 h_Aβ (1-42) FL
#27710 h_Aβ (1-43) FL

#27713 h_Aβ (X-40)
#27711 h_Aβ (X-42)
#27729 h_Aβ (1-X)

#27418 h_Aβ (N3pE-40)
#27716 h_Aβ (N3pE-42)
#27709 h_Aβ Toxic Oligomer

#27725 h_Aβ Oligomers (82E1 specific)
#27720 m/r_Aβ (1-40) High-Specific
#27721 m/r_Aβ (1-42)

APP

#27731 h_sAPP, Total (h.s.)
#27734 h_sAPPα (h.s.)

#27732 h_sAPPβ-w (h.s.)
#27733 h_sAPPβ-sw (h.s.)

#27736 h_APP770
#27776 h_APP βCTF
#27419 m/r_sAPPα (h.s.)

α-Klotho

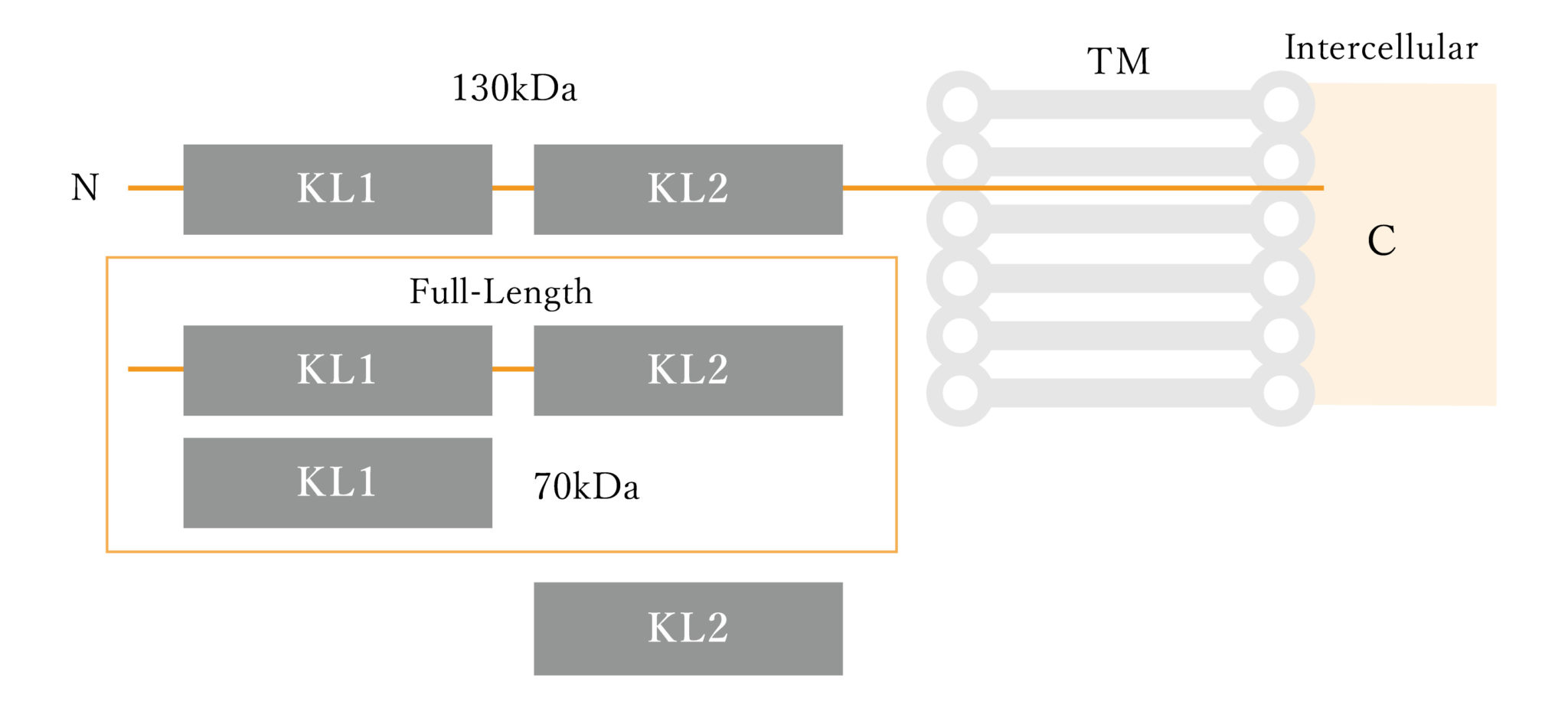

α-Klotho– Transmembrane (TM) protein/mainly expressed in kidneys and parathyroid glands

α(Alpha) -Klotho protein is a one-transmembrane protein (130 kDa) that expresses in kidneys and the parathyroid glands and it has an important role for regulating mineral metabolism. It is considered that early aging-like symptoms are induced in α-Klotho knockout mice so it has also been focused on during research of Alzheimer’s disease. #27998 Human soluble α-Klotho specifically detects human soluble α-Klotho, KL1 and KL1+KL2.

α(Alpha) -Klotho

#27998 h_soluble α-Klotho

#27601 m_soluble α-Klotho

Tau / Phosphorylated Tau

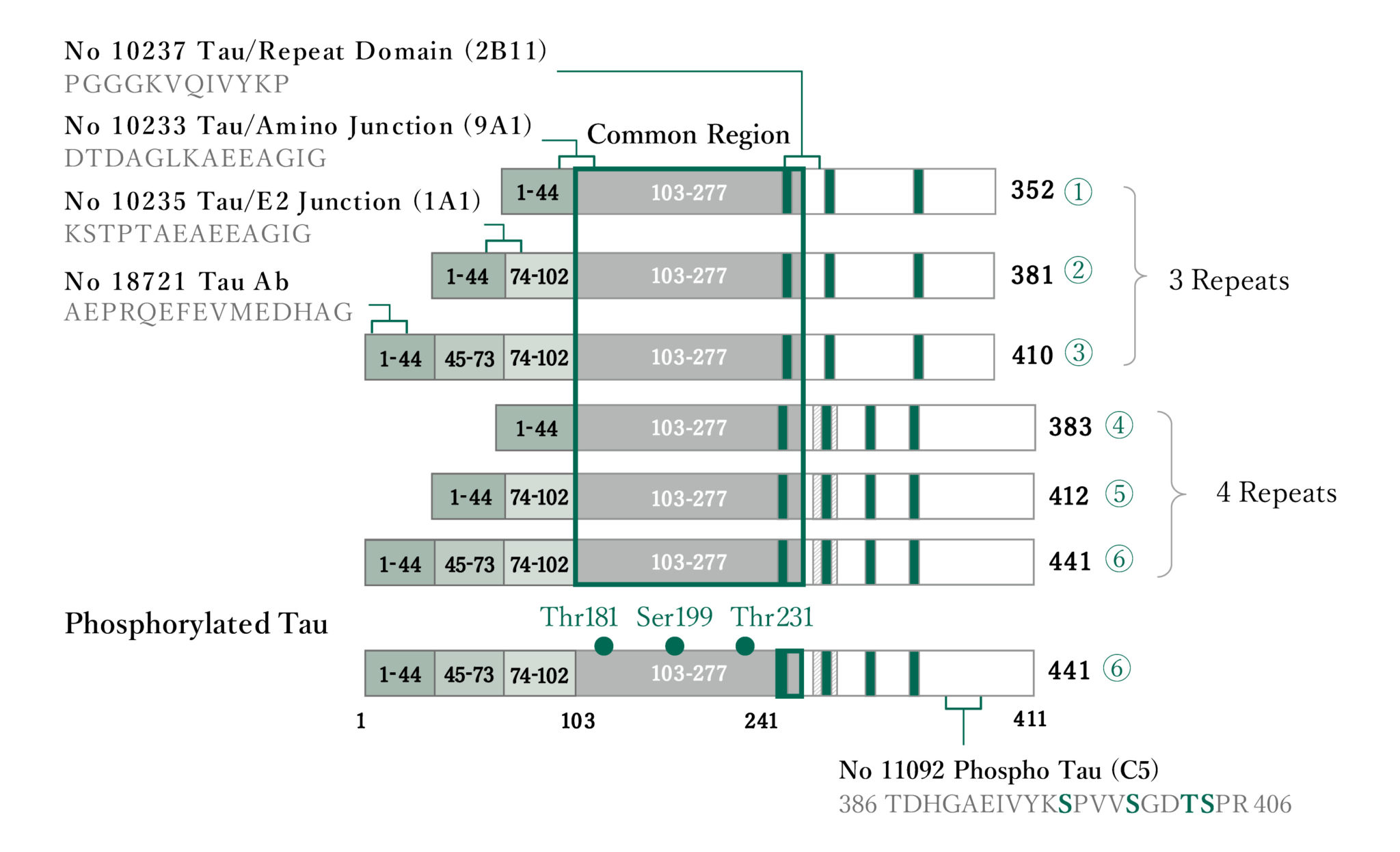

Tau 6 Isoforms

Tau is a microtubule binding protein (50 ~ 70kDa) that expresses in nerve axons and it has an important role for regulating stability of microtubules in neurons. Tau proteins consist of 6 isoforms that are produced by selective splicing as 3 repeats and 4 repeats Tau isoforms. #27811 Human Total Tau detects human total Tau (all tau isoforms) and #27812 Human Phospho Tau (181P) specifically detects human Tau that is phosphorylated threonine at position 181.

Tau

#10237 Tau/Repeat Domain (2B11)
#10233 Tau/Amino Junction (9A1)
#10235 Tau/E2 Junction (1A1)

#18721 Tau Ab
#11092 Phospho Tau (C5)

#27811 h_Total Tau
#27812 h_Phospho Tau(181P)

Kidney Disease

α(Alpha)-Klotho has an important role for regulating mineral metabolism as the co-receptor of FGF23 that is extensively researched in kidney disease. IBL has an ELISA that specifically detects human soluble α-Klotho which has been IBL’s bestselling product since it was released in 2010. IBL also has a lot of unique ELISA products in the field of kidney research such as Gd-IgA1 for IgA Nephropathy, Angiotensinogen for Renin-Angiotensin-Aldosterone System (RAAS) involved in the regulation of blood pressure, as well as Soluble (Pro) Renin Receptor and AIM (Apoptosis Inhibitor of Macrophage) ELISAs.

α-Klotho

CKD

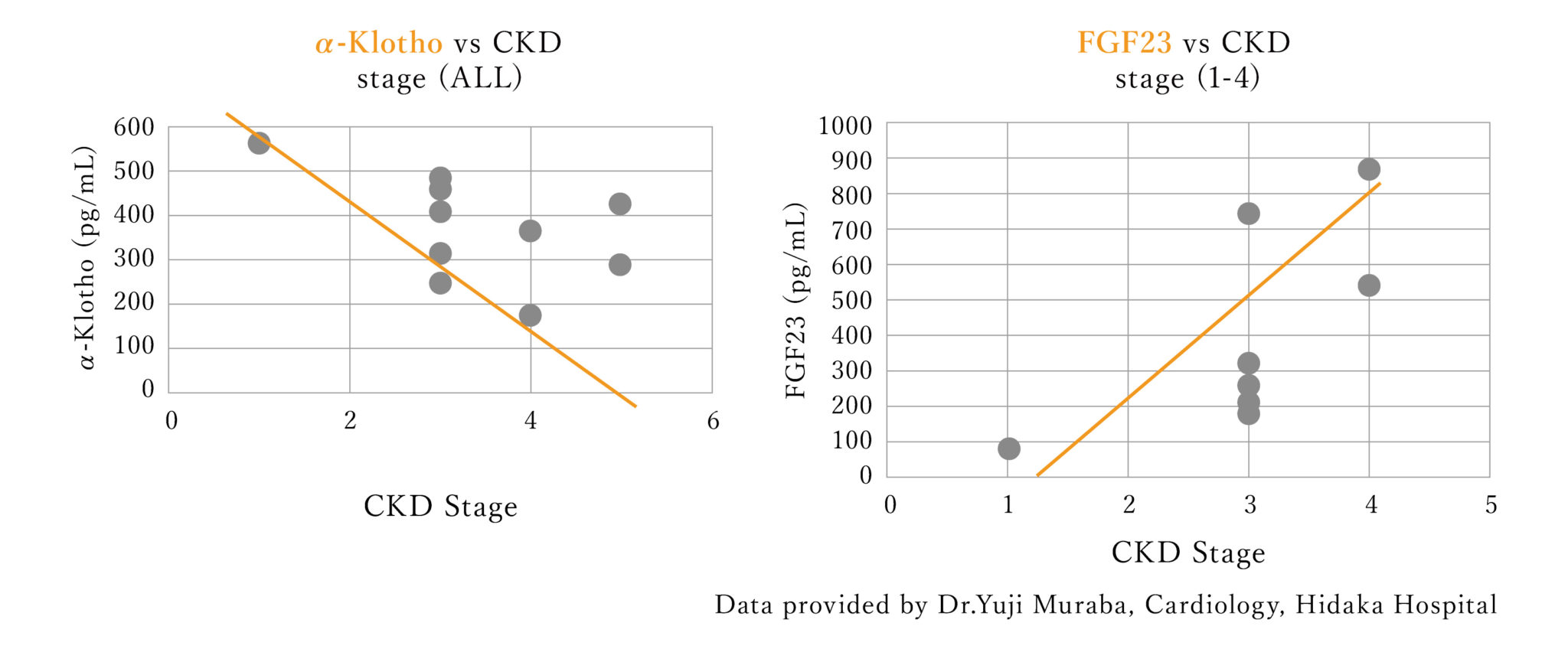

Negative Correlation(α-Klotho vs FGF23)
(Human EDTA-Plasma)

α-Klotho – Transmembrane (TM) protein / mainly expressed in kidneys and parathyroid glands

α(Alpha)-Klotho is widely measured in CKD research. It is a one-transmembrane protein (130 kDa) that is expressed in kidneys and the parathyroid glands and it has an important role for regulating mineral metabolism. #27998 Human soluble α-Klotho specifically detects human solubleα-Klotho, KL1 and KL1+KL2.

α-Klotho

#27998 h_soluble α-Klotho

#27601 m_soluble α-Klotho

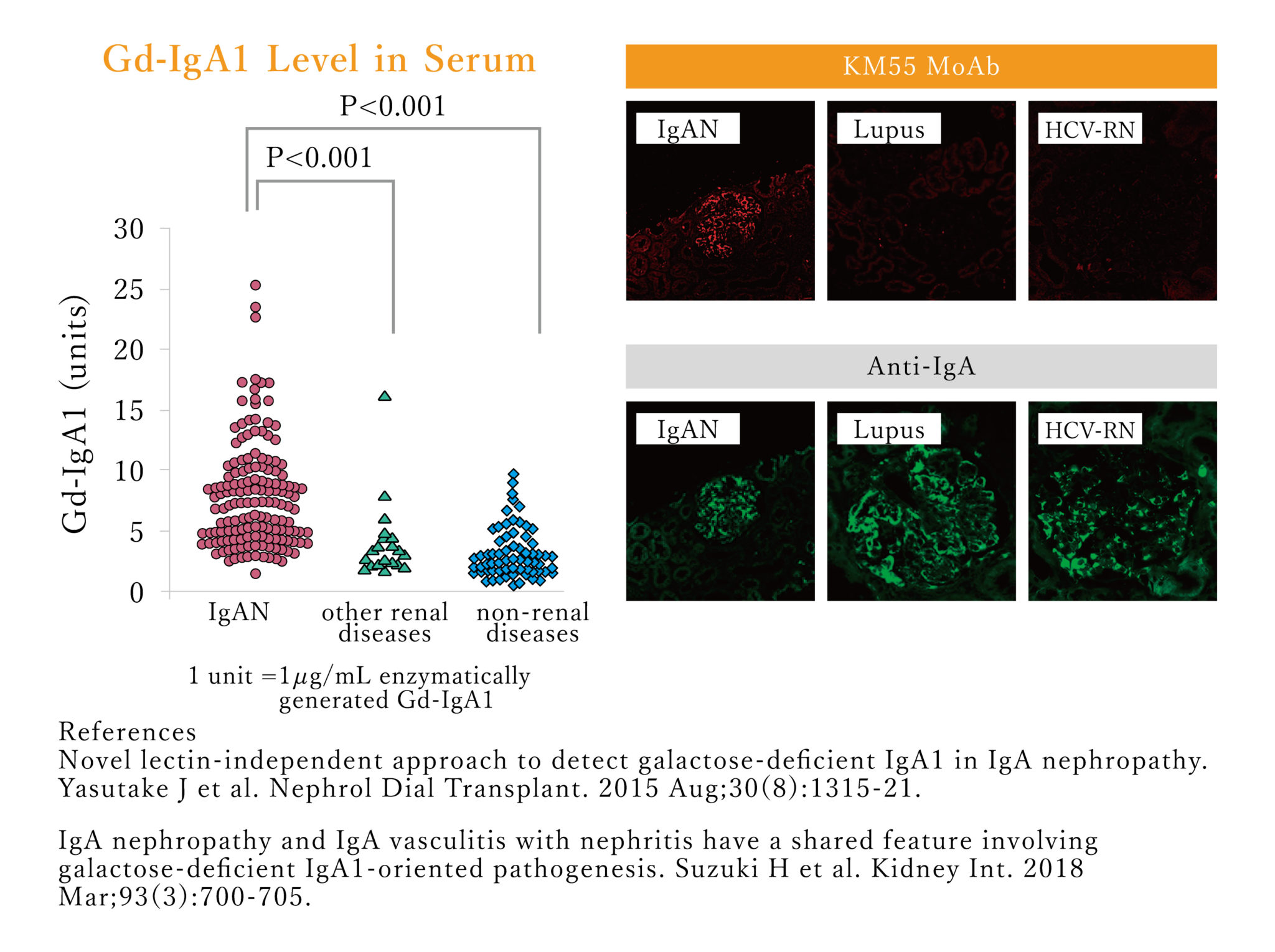

Gd-IgA1 (Galactose-deficient IgA1)

Galactose-deficient IgA1 (Gd-IgA1)attracts a lot of attention as a critical effector molecule in the pathogenesis and progression of IgA Nephropathy (IgAN) in recent research.The IBL ELISA kit, using a monoclonal antibody (KM55) that specifically recognizes the galactose-deficient hinge sequence of human Gd-IgA1, is a lectin non-dependent measuring system that can quantitatively measure Gd-IgA1 in human serum. It is also suitable for large scale studies because of its stability. #27600 Human Gd-IgA1 ELISA specifically detects human Gd-IgA1 and #10777 Gd-IgA1 (KM55) MoAb can be used for IHC.

Gd-IgA1

#27600 h_Gd-IgA1

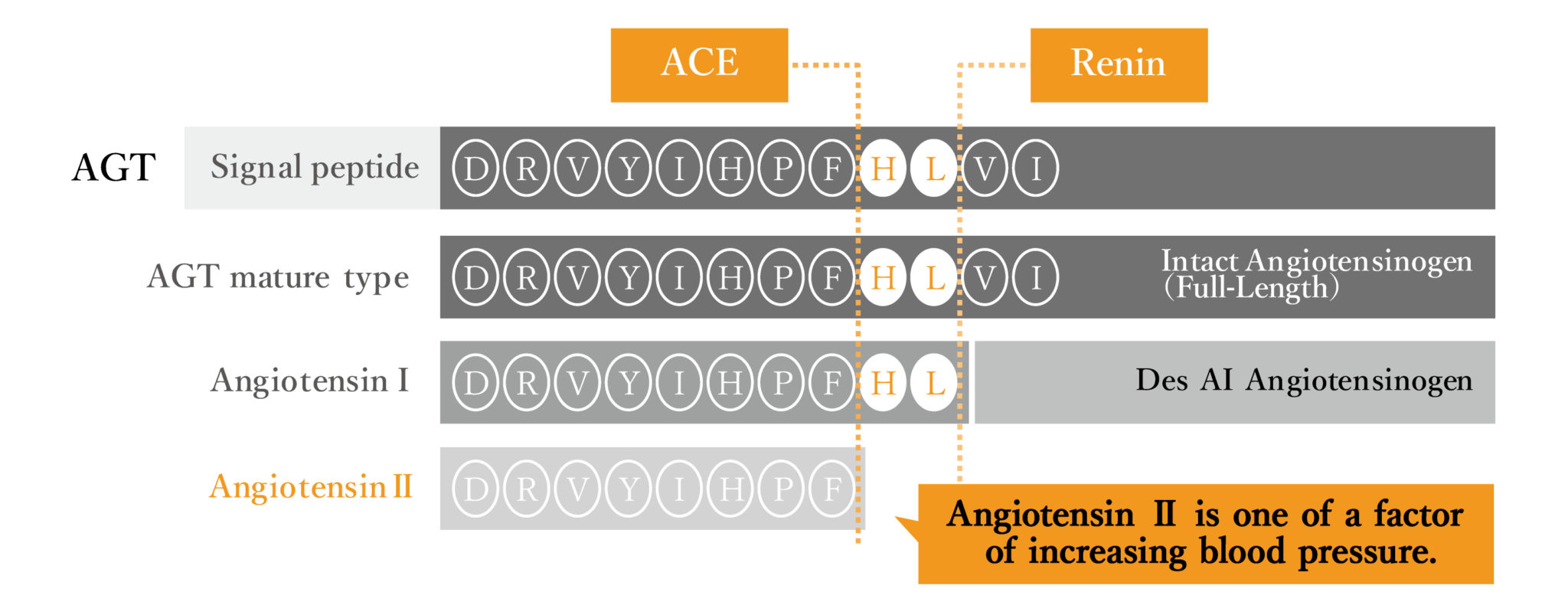

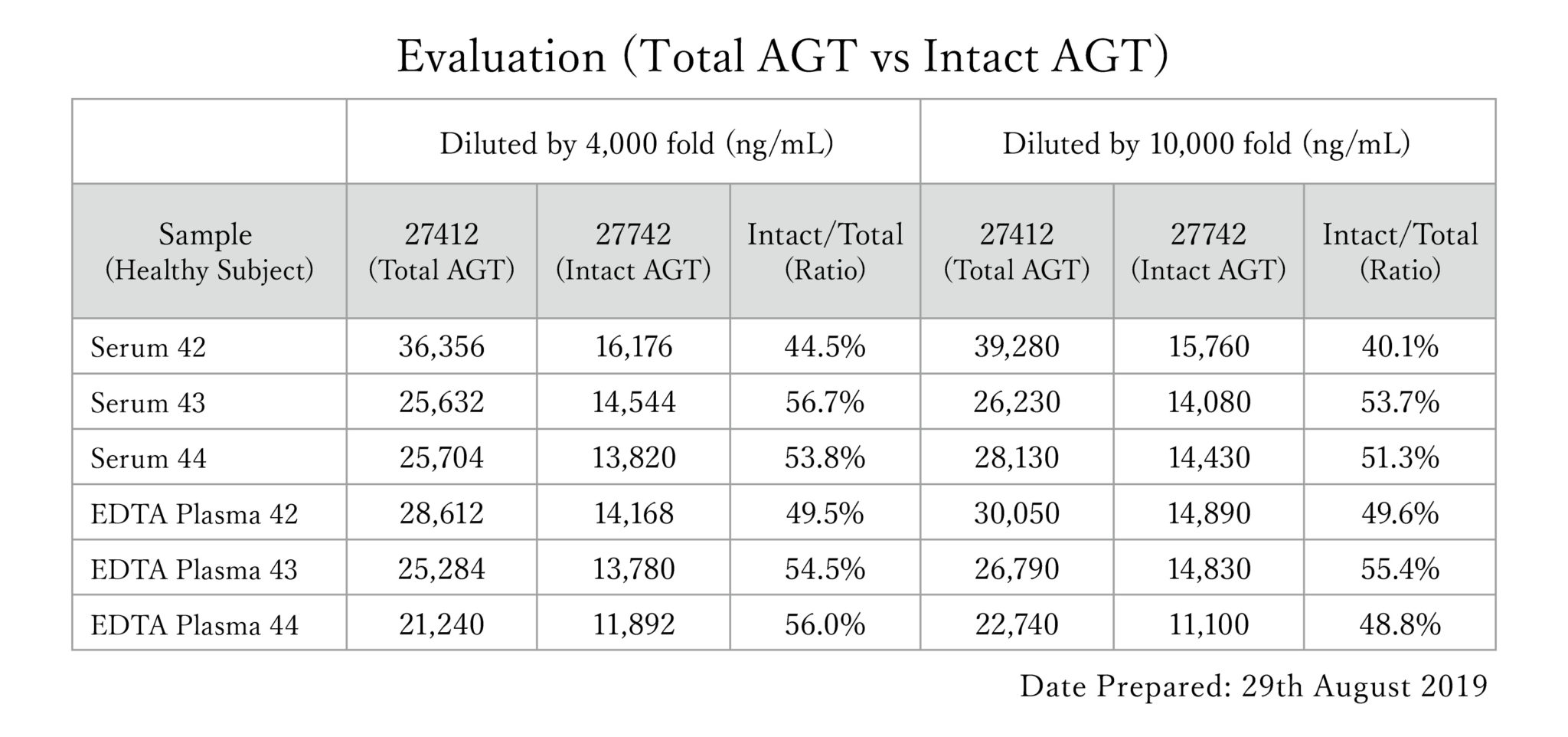

Angiotensinogen (AGT), Total / Intact (Full-Length)

Angiotensinogen (AGT) is a useful biomarker for research in hypertension as it is involved in the Renin-Angiotensin-Aldosterone System (RAAS). #27412 Human Total AGT detects both human Intact (Full-Length) and Des AI AGT that is cleaved by renin. #27742 Human Intact AGT specifically detects only human Intact AGT.

Angiotensinogen

#27412 h_Total Angiotensinogen (AGT)
#27742 h_Intact Angiotensinogen (AGT)

Gd-IgA1

AIM #27265 h_AIM/CD5L
FGF21 #27997 h_FGF21
Soluble (Pro) Renin Receptor #27782 hmr_s(Pro) Renin Receptor

Inflammatory Disease

IBL has been continuously involved in the research, development, manufacturing, and supply of antibodies used in cancer research since we first started research and development on Carcinoembryonic antigen (CEA) when the company was established. We have various antibodies and ELISAs which can be used in research of various cancers, such as large intestine cancer, stomach cancer, thyroid cancer, breast cancer, lung cancer, liver cancer, prostate cancer, leukemia, and mesothelial tumors.

CD134/OX40

Factors involved in activated T cells and T cell proliferation /invasion

CD134/OX40 is a receptor of OX40 ligand (OX40L) transactivated by Tax of HTLV-1. OX40 is expressed in activated CD4+ and CD8+ T cells. OX40 on the activated T cells has a role in proliferation of T cells and production of cytokines by binding with OX40L expressed on antigen presenting cells like dendritic cells or activated B cells. In addition, it may also be involved in activated T cell invasion to inflamed areas through the binding with OX40L.

CD134/OX40
#27110 h_CD134/OX40

LRG

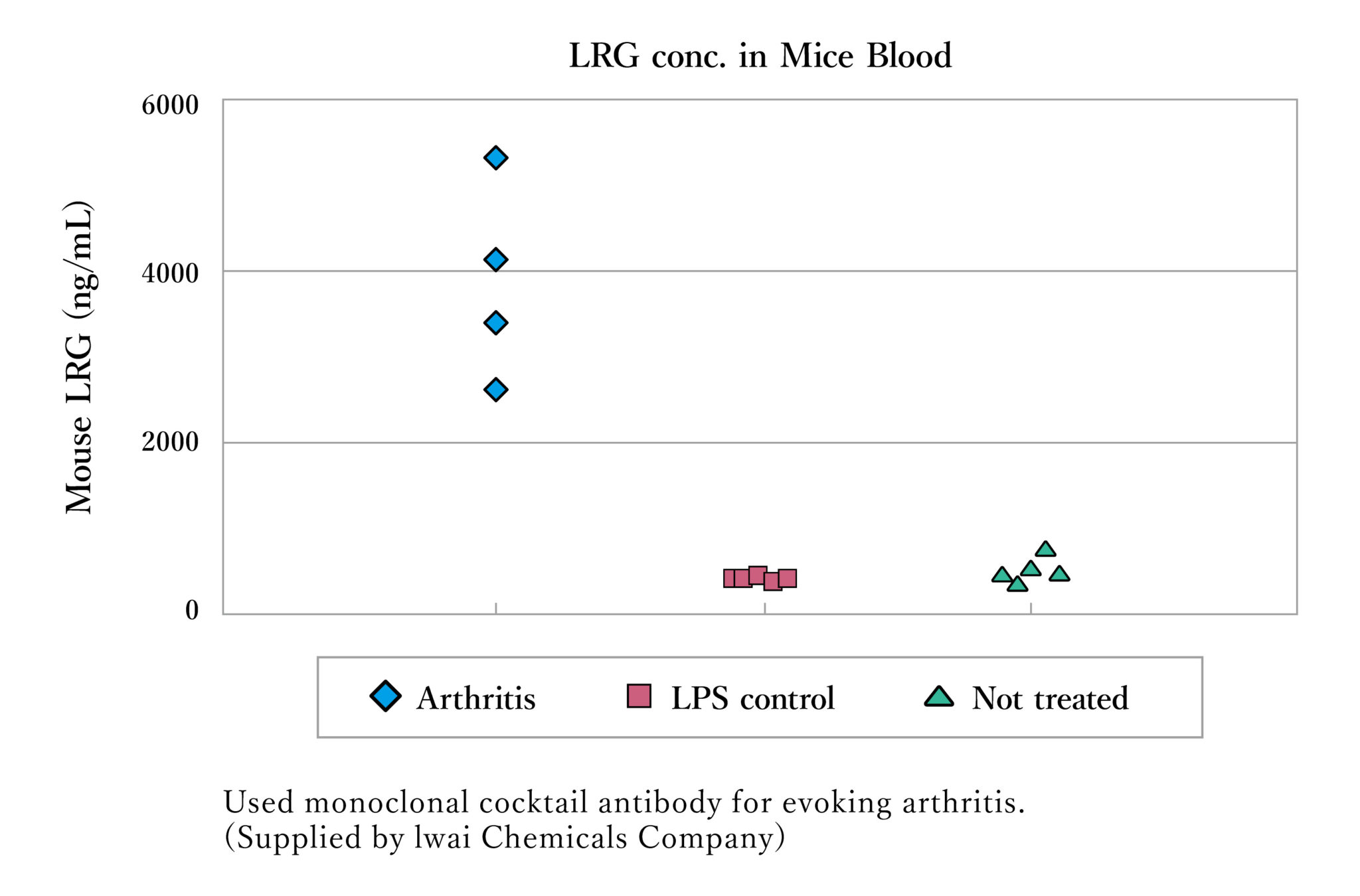

Measurement of the Concentration of LRG in Blood of Arthritis Evoked Mice

LRG is focused on as an active biomarker used in research of inflammatory related disease. It has been used in research of various cancers and inflammatory disease such as idiopathic Normal Pressure Hydrocephalus (iNPH), diabetes, pancreatic cancer and Primary Biliary Cholangitis (PBC).

LRG
#27769 h_LRG
#27785 m_LRG
#27770 r_LRG (On Request)

Mac-2bp

Explanation of Method of Feeding

Normal Meal
The meal that is used as a normal meal at an animal testing center was fed to mice.

NASH Meal
High fat and high cholesterol food (7.5% fatty acid, 1.25% cholesterol, and 0.5% cholic acid) was fed to mice for 4 weeks or 8 weeks.

Mac-2 binding protein (Mac-2bp) is a secreted glycoprotein (90kDa) and identified as a ligand of Galectin-3. It is considered that it promotes cell adhesion through interaction with Galectin-3. It has also been considered that Mac-2bp is a useful blood biomarker for research of chronic hepatic diseases such as NASH (Non-Alcoholic Steatohepatitis).

Mac-2bp
#27362 h_Mac-2bp
#27796 m_Mac-2bp

Other Products

N-ERC/Mesothelin
#27190 h_N-ERC/Mesothelin
#27783 m_N-ERC/Mesothelin (On Request)
#27765 r_N-ERC/Mesothelin

Mac-2bp
#27362 h_Mac-2bp
#27796 m_Mac-2bp

G-CSF
#27131 h_G-CSF

Galectin-3
#27755 h_Galectin-3

Osteopontin
#27158 h_Osteopontin
#27258 h_Osteopontin N-Half
#27351 m_Osteopontin
#27259 m_Osteopontin N-Half
#27360 r_Osteopontin

Periostin
#27262 h_Periostin

Syndecan-4
#27188 h_Syndecan-4

Tenascin-C
#27751 h_Tenascin-C Large (FNⅢ-C)
#27767 hmr_Tenascin-C Large (FNⅢ-B)

VEGF Family
#27171 h_VEGF
#27102 m_VEGF
#27101 r_VEGF
#27756 h_VEGF-C

VEGF Receptor
#27779 h_VEGFR-3/Flt-4

Glucose-Lipid Metabolism

IBL has a comprehensive line of incretin related assays that are used in diabetes research. We also have a wide range of assays that are useful for panel measurement of lipid metabolic related proteins for searching drug seeds and hyperlipidemia or cardiovascular event research. In some cases measurement of incretin or insulin may require the use of small animal samples such as mice or rats. In these instances, it can oftentimes be difficult to obtain enough sample volume for measurement. Because of this, highly sensitive assay systems are required for measuring low concentrated incretin and insulin in fasting using small animal samples. The IBL ELISAs are highly sensitive to ensure accurate measurement in small volume samples.

GLP-1, Active

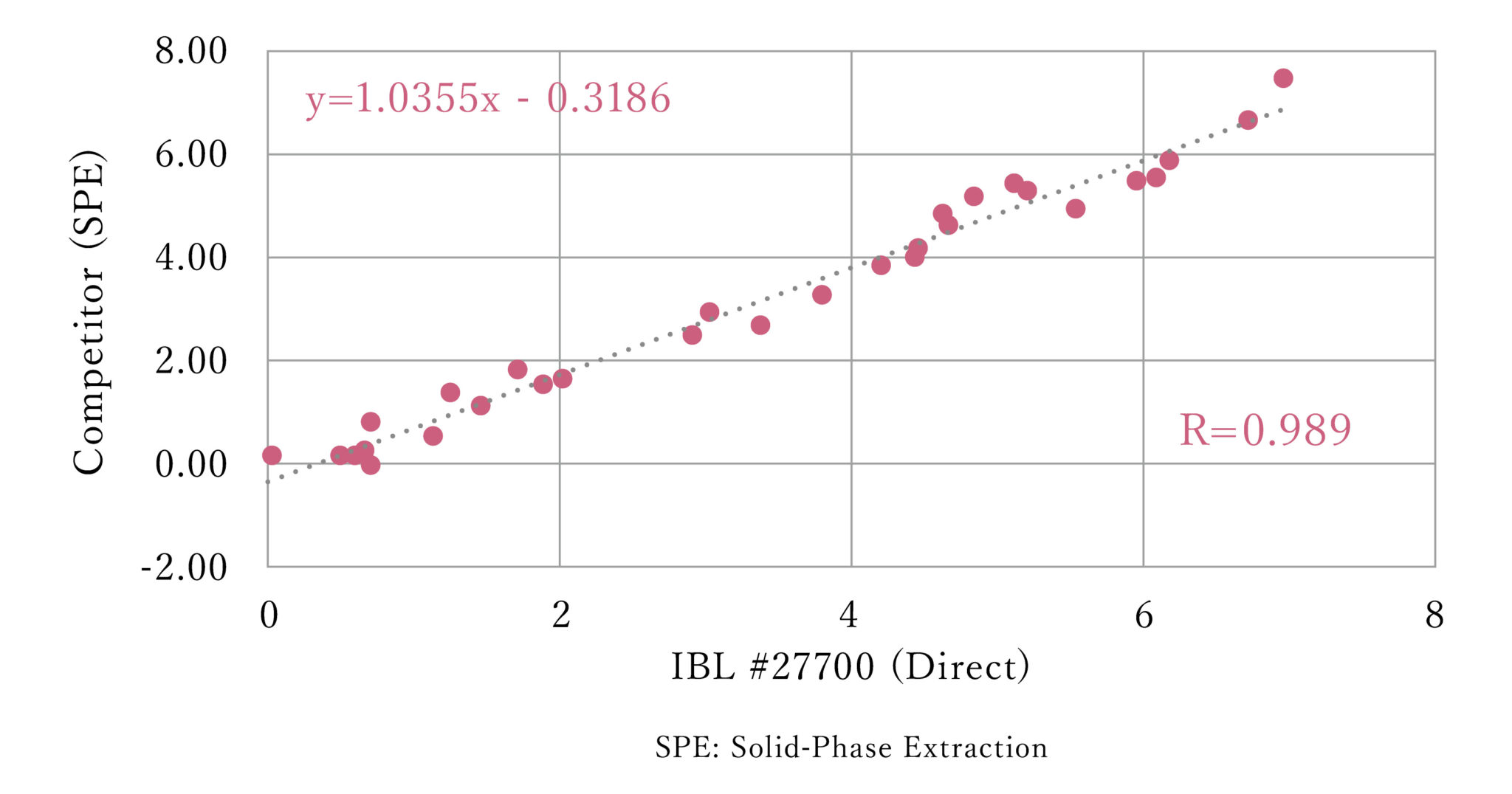

IBL #27700 (Direct) vs Competitor (SPE)
(Correlation Data)

IBL’s GLP-1 active kit was strategically developed for preventing non-specific unwanted reaction against HAMA even if you skip the hectic solid-phase extraction (SPE) process. The ELISA also provides stable assay results due to the level of sensitivity even if you measure it in the range of low concentration in fasting. #27700 GLP-1, active (h.s.) ELISA can also be used among human, mouse and rat samples.

Diabetes Research

Incretin(GLP-1/GIP)

#27700 hmr_GLP-1, active (h.s.)*
#27784 hmr_GLP-1, active
#27788 hmr_GLP-1 (9-36/37)*
* GLP-1: 20μL

#27201 h_GIP, active
#27203 h_GIP, total
#27702 m_GIP, active (h.s.)*
* GIP: 5μL

#27701 m_GIP, total (h.s.)*
#27704 r_GIP, active (h.s.)*
#27703 r_GIP, total (h.s.)*
* Required Sample Volume for Rodents

Insulin (ELISA/CLEIA)

#27705 m/r_Insulin, total (h.s.) ELISA *2μL
#27706 m/r_Intact Proinsulin ELISA *20μL

#27707 m/r_Insulin, total (wide range) CLEIA *5μL
#27708 m/r_Intact Proinsulin CLEIA *10μL
* Required Sample Volume for Rodents.

DPP4/CD26
#27789 h_DPP4 / CD26

Hyperlipidemia / Cardiovascular Events

Lipid Panel

#27191 h_ApoA5
#27181 h_ApoB100
#27263 h_EL C-Term
#27182 h_EL (FL)
#27180 h_Serum HTGL

#27179 h_GPIHBP1
#27745 h_ANGPTL2
#27750 h_ANGPTL3 (h.s.)
#27749 h_ANGPTL4
#27795 h_ANGPTL8

#27185 h_LPL/HTGL (Activity)**
#27264 h_LPL/HTGL (Activity) Control Plus**

** The assays are not ELISA.

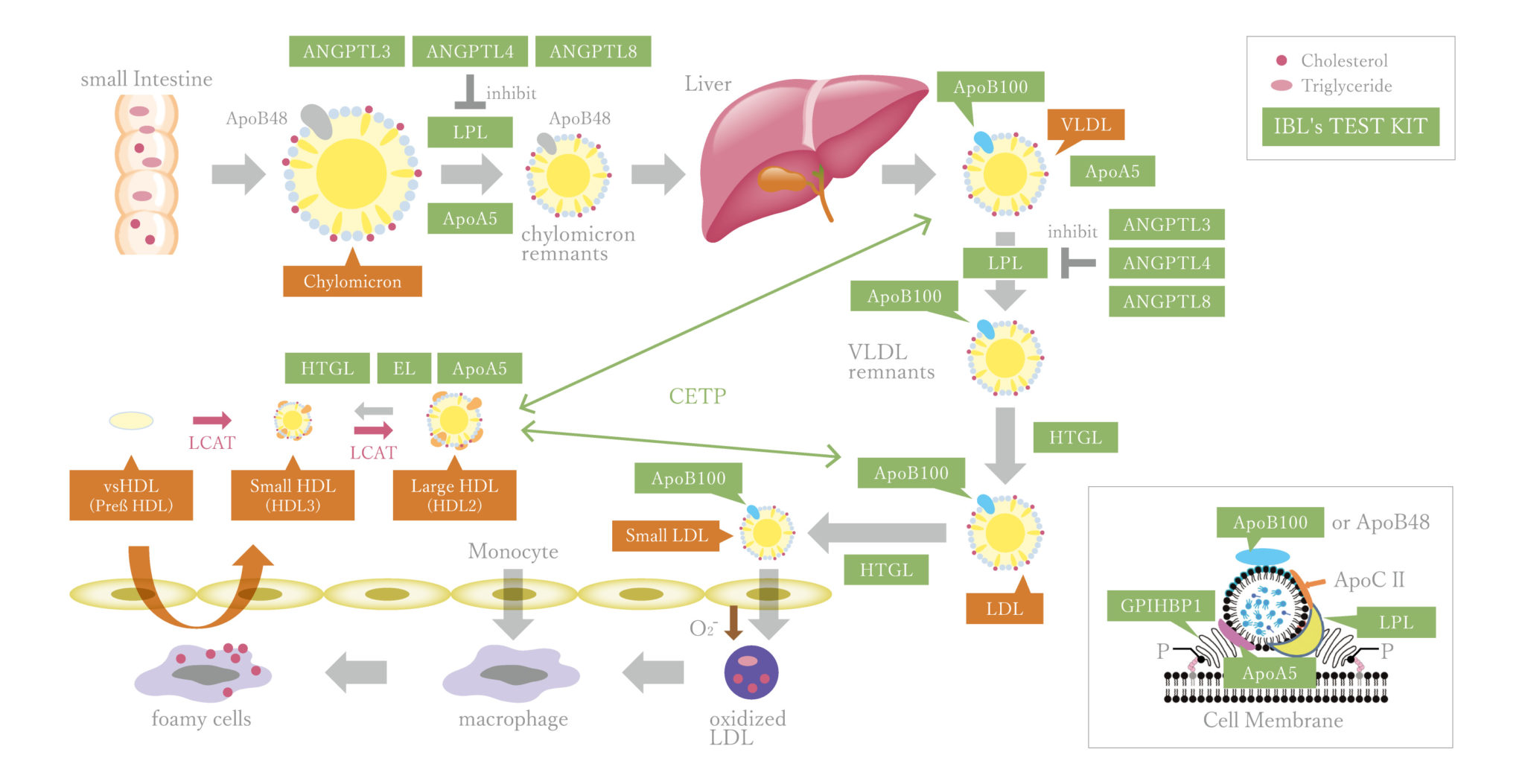

Lipid Metabolism Map

Significance of TG Control
The significance of triglyceride (TG) controls has been shown in recent studies. Development of new drugs that inhibit regulating factors of LPL activity that are critical for TG metabolism has been progressing on a fast track.

Future Drug Development (ANGPTL3, 4, 8 and ApoC3 inhibitors)
The factors that negatively regulate LPL activity like ANGPTL3 inhibitor and recent hot topics “The Development of ApoC3 Inhibitor” have been actively discussed by researchers. It has been expected that the most focused drug development might be ANGPTL4 inhibitor and/or ANGPTL8 inhibitor in the near future.

Another Risk Factor as Drug Development Target (ApoA5 and GPIHBP1)
It has been considered that possible risk factors that positively regulate LPL activity like ApoA5 or GPIHBP1 might be targeted in drug development for the purpose of TG controls. Furthermore, it has been suggested that ApoA5 could be an important risk factor for early-onset myocardial infarction as well as LDL receptor by genome analysis.

ANGPTL2 associates with Cardiac Dysfunction
It is recently reported that there may be evidence of correlation between elevated circulating ANGPTL2 levels and cardiovascular disease (CVD) or heart failure (HF) as well as association between ANGPTL2 expression and cellular senescence.

h: Human m: Mouse r: Rat m/r: Mouse / Rat hmr: Human / Mouse / Rat h.s.: High-Sensitive FL: Full-Length

Custom Services

View all Services

Outsourcing services for immunity, cell culture, and gene engineering research!

We provide customized services in response to customer needs, drawing upon on our extensive experience and wealth of expertise in the immunity, cell culture, and gene engineering fields. Depending on the nature of the request, we sometimes conclude confidentiality agreements prior to starting the provision of services. All the steps of the antibody production process, from immunization to purification, are conducted internally. We make it our mission to meet the individual needs of each customer.

Development of Polyclonal Antibodies

We provide services for the development of various types of monoclonal antibodies, including purified proteins, synthesized peptides, pharmaceutical analogs, low molecular weight compounds, Host Cell Protein (HCP), and idiotype antibodies. Note* Maximum number of animals (excluding goats) is three. Please contact us if you require more than three animals for immunization.

Note* We can also handle low endotoxins for in vivo or in vitro testing.

Immunized Animal	Volume	Price	Required Period
Rabbit	1	On Request	4 months
Goat	1	On Request	4 months
Rat	1	On Request	3 months
Guinea Pig	1	On Request	3 months
Mouse	1	On Request	3 months

Synthesizing Peptides

We provide services for synthesizing peptides used as immunogen, such as consultation on selecting an amino-acid sequence. We can develop high titer antibodies at reasonable cost because we manage the entire development process, from the synthesis of peptides to the fabrication of antibodies.

Binding Carrier Proteins

We bind carrier proteins to synthesized peptides used for immunogen, under the appropriate binding conditions, for the purpose of developing antibodies.

Details	Price
Per Immunogen	On Request

Development of Monoclonal Antibodies

We apply our expertise in immunity and cell cultures for developing monoclonal antibodies, including the immunization of mice and rabbits, cell fusion, and second cloning. We select reliable clones based on immunization, screenings, and in-depth communication with clients.

Details	Price
Development of Monoclonal Antibodies per Immunogen	On Request

Collecting Mice Ascites

We collect mice ascites after we receive hybridoma (cell line) from clients. We have the ability to meet customer needs by applying our accumulated expertise and experience to collect mice ascites from hybridoma that normally considered difficult to work with. We can look after 10 to 1,000 mice.

Note* We can also handle low endotoxins for in vivo or in vitro testing

Details	Price
Per BALB/C Mouse	On Request
Per Nude Mouse	On Request
Per SCID Mouse	On Request

Purifying Antibodies

We provide services for purifying antibodies, such as affinity chromatography from various antiserums, ascites, fusion cell culture supernatants, and gel filtration. We can handle bulk purifying antibodies in quantities of more than 1,000 mg.

Note* We can also handle low endotoxins for in vivo or in vitro testing.
Please contact us for further discussion.

Details	Price
IgG Purification (Protein A or Protein G)	On Request
From IgG ( up to 50 mg) to F( ab’ )2 Purification (Pepsin Decomposition / Gel Filtration)	On Request
From IgG F (ab’)2 (up to 20 mg) to Fab’ Purification (Reduction / Gel Filtration)	On Request
From IgG (up to 20 mg) to Fab’ Purification (Papain Decomposition, FC Removal / Gel Filtration)	On Request

Development of ELISA Systems

We develop ELISA systems by utilizing our know-how in commercializing IBL ELISA kits, managing the entire process from antibody development to the establishment of the ELISA system. We can also establish ELISA systems using antibodies held by customers. We plan and propose the appropriate assay design, such as the sandwich method or competition method, to fit the intended purpose. We work hard to establish ELISA system that offer outstanding performance, such as making it easy to draw the appropriate standard curve and obtain excellent recovery measurement values. Please contact us for further details.

Immunohistochemical Staining (IHC)

We provide immunohistochemical staining (IHC) services for research purposes. We conduct HE staining and IHC on the behalf of customers, and can also develop and stain cell block arrays. Please contact us for further details.

Development of Labelled Antibodies

We provide services for the development of labelled antibodies. We can label compounds (such as Biotin and FITC) to proteins and antibodies. The binding method and binding ratio are always discussed prior to the provision of service. We can also perform labeling after Fab’ fraction or F(ab’)2. Please contact us for further details.

Development of Bio Columns (Antibodies and Proteins, etc)

We provide services for developing bio columns that bind antibodies or proteins for the purposes of extracting or purifying bio materials. Please contact us for further details.

Gene Engineering

We provide gene engineering services.

Cell Culturing

We provide services for culturing bulk quantities of various types of cell lines. We always discuss the culturing method, collection method, and supernatant concentration with the customer prior to the provision of service. We can also handle low endotoxins for in vivo or in vitro experiments. Please contact us for further details.

Supplying and Maintaining Cells for Experiments

We provide services for maintaining customer cells (such as cancer cells, normal cells, and gene introduced cells) and supplying cells. We can accommodate requests for quantities as small as five T-25 flasks. Please contact us for further details.

Frozen Cell Storage Service

We provide services for freezing and storing cells from customers. The cells are stored frozen in liquid nitrogen (gas phase) under strict control. Please contact us for further details.

Featured Products

	Human soluble α-Klotho Assay Kit	Gd-IgA1 (Galactose-deficient IgA1) Assay Kit
	27998-IBL	27600-IBL
Product Code	27998	27600
Product Name	Human soluble α-Klotho Assay Kit – IBL	Gd-IgA1 (Galactose-deficient IgA1) Assay Kit – IBL
Intended Use	Research reagents	Research reagents
Measuring Method	ELISA	ELISA
Conjugate	HRP	HRP
Species	Human	Human
Measuring Samples	Human serum, EDTA Plasma, Heparin Plasma, Citrated Plasma, Urine and cell culture supernatant.	Serum, EDTA-plasma
Measurement Range	93.75 – 6,000 pg/mL	1.56 ~ 100 ng/mL
Primary Reaction	60 minutes at room temperature	60 minutes at room temperature
Secondary Reaction	30 minutes at room temperature	30 minutes at room temperature
Sensitivity	6.15 pg/mL	0.488 ng/mL
Specificity	Compound Cross Reactivity
	Human α-Klotho 100.0%
	Human osteopontin ＜0.1 %
	Human VEGF (165) ＜0.1 %
	Human PDGF ＜0.1 %
Storage Condition	2 – 8 ℃	2～8°C
Poisonous and Deleterious Substances	Not Applicable	Not Applicable
Cartagena	Not Applicable	Not Applicable
Measuring Service	Available	Available
Package Size 1	96 Well	96 Well
