Power Styramide™ Signal Amplification (PSA™)

Power Styramide™ Signal Amplification (PSA™) is a novel enzymatic amplification method used to detect low-abundance targets in cells and tissues. By combining the superior brightness and photostability of iFluor™ dyes with poly-HRP mediated PSA™ imaging, generate bright fluorescence signals with significantly higher precision and sensitivity (more than 100-fold greater) than conventional immunohistochemistry, immunocytochemistry and in situ hybridization techniques.

Power Styramide™ Signal Amplification

Similar to tyramide signal amplification (TSA), PSA™ imaging uses the analyte-dependent reporter enzyme, horseradish peroxidase (HRP), to catalyze the covalent deposition and binding of labeled-Styramide™ substrates onto a target protein or nucleic acid sequence in situ. In the presence of hydrogen peroxide (H2O2), HRP converts labeled Styramide™ substrates into highly-reactive, short-lived Styramide™ radicals that rapidly bind to tyrosine residues on and proximal to the enzyme site. Styramide™ radicals have a much higher reactivity than tyramide radicals, making imaging with PSA™ significantly faster, more robust and sensitive than conventional TSA labeling. And, since the added labeled-Styramide™ are deposited in close proximity of the HRP-target site, there is minimal diffusion-related loss of resolution. PSA™ imaging technology can be readily added to any application that allows for the integration of HRP into it’s protocol, such applications include, IHC, ICC, IF, in situ hybridization and ELISA.

Figure 1. Schematic representation of PSA™ detection method applied to immunolabeling of a target antigen. Using a conventional detection method, cells or tissue samples are probed with an unlabeled primary antibody and an HRP-secondary conjugate. HRP catalyzes the conversion of labeled Styramide™ into highly-reactive Styramide™ radicals that covalently bind to tyrosine residues on and proximal to the enzyme site.

Advantages of PSA™ Imaging System

Power Styramide™ signal amplification resulting from the rapid catalyzation and covalent deposition of multiple Styramide™ substrates per HRP label translates to many practical benefits including simplicity, enhanced sensitivity and specificity, and compatibility with other techniques. The higher reactivity of Styramide™ radicals, permits a more robust and expeditious labeling of Styramide™ at the HRP-target interaction site resulting in a stronger signal intensity and better spatial resolution than TSA.

Key Features of PSA™:

  • Ultra-sensitive detection of low-abundance targets, 100-fold greater than IHC, ICC and IF methods
  • High fluorescence intensity, 10 to 50-fold greater than tyramide
  • Compatible with other fluorescent markers, staining techniques and PSA™ imaging kits for multiplex analysis
  • Higher reactivity of PSA™ radicals for faster results and equivalent sensitivity and resolution versus radiometric detection
  • Conserve precious antibodies, PSA™ labeling achieves equivalent levels of sensitivity with significant reduction in primary antibody
  • PSA™ imaging kits are easy-to-use and provide sufficient reagents for 100 tests

iFluor™ 594 Styramide™
(Cat No. 45035)

Alexa Fluor® 594 tyramide
(Cat No. 11082)

Figure 2. Fluorescence IHC of formaldehyde-fixed, paraffin-embedded using PSA™ and TSA amplified methods. Human lung adenocarcinoma positive tissue sections were stained with mouse anti-EpCam antibody and then followed by PSA™ method using iFluor 594™ PSA™ Imaging Kit with Goat Anti-Mouse IgG (Cat No. 45290) or TSA method using Alexa Fluor® 594 tyramide, respectively. Images were taken using the TRITC filter set and under the same exposure time. Nuclei were counterstained with Nuclear Blue™ DCS1 (Cat No. 17548).

Superior Detection Sensitivity

In immunological staining applications, sensitivity enhancements derived from PSA™ imaging allows for increases in primary antibody dilutions with no sacrifice in assay sensitivity. Furthermore, increasing the primary antibody dilutions reduces nonspecific background signals as well as overcome insufficient immunolabeling caused by poor fixation procedures or low-levels of target expression.

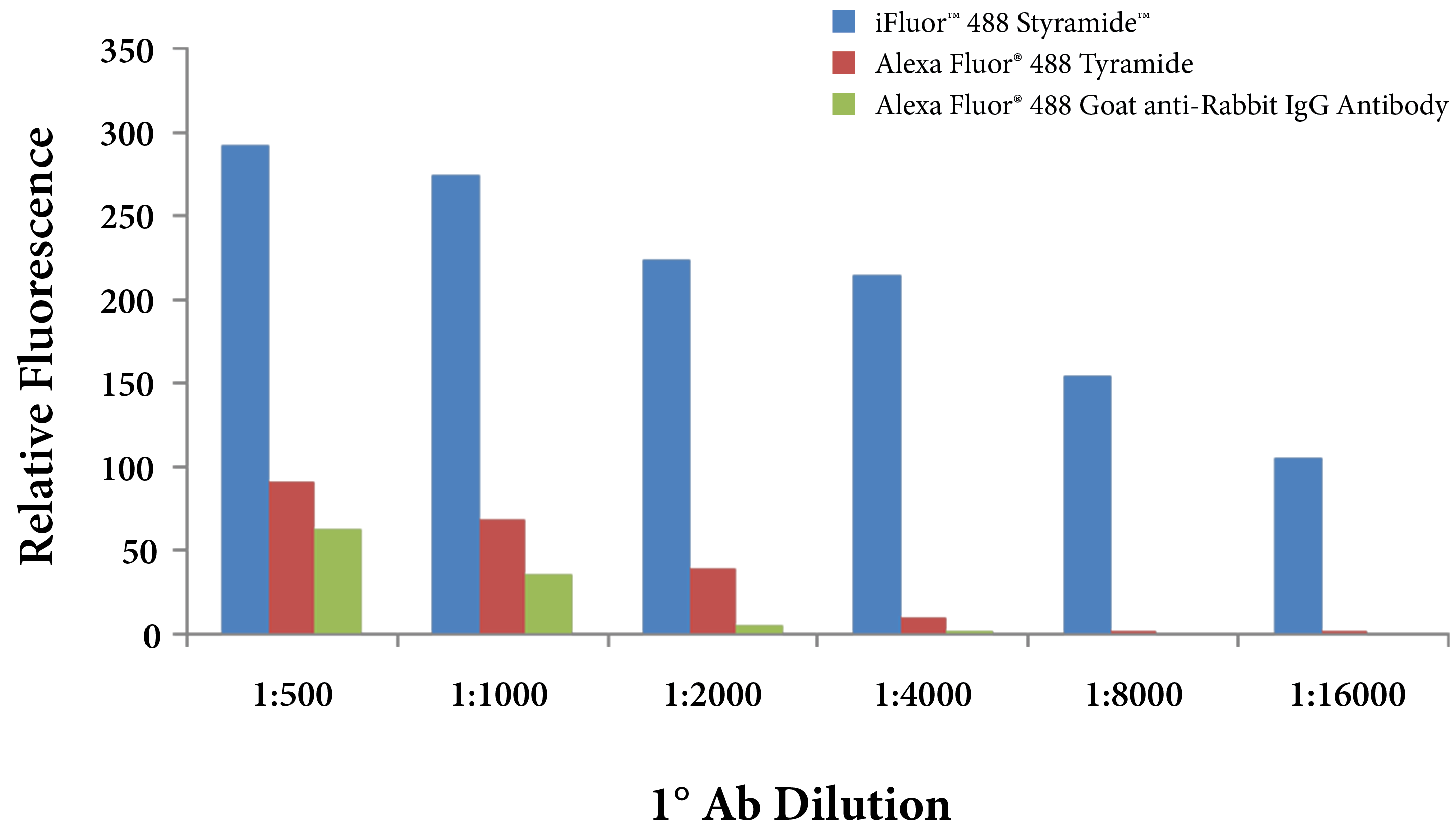

Figure 3. Sensitivity of Power Styramide™ Signal Amplification (PSA™) Kits. HeLa cells were fixed, permeabilized and labeled with various concentrations of rabbit anti-tubulin primary antibody. The manufacturer recommendation was 1:500 dilution or 2 µg/ml. Cells were then stained with reagents in our iFluor™ 488 PSA™ Imaging Kit with Goat Anti-Rabbit IgG, an Alexa Fluor® 488-labeled tyramide or an Alexa Fluor® 488-labeled goat anti-rabbit IgG. Cell images were captured from each treatment under the same conditions (using a FITC filter set and analyzed with the same exposure time). Relative fluorescence signal intensity was measured and compared between different detection methods.

Multiplexing with PSA™

PSA™ system has been designed to be compatible with other fluorescent makers, cell and tissue staining techniques, and with other PSA™ imaging kits, enabling simultaneous visualization of multiple targets. The lower detection threshold of PSA™ compared to TSA and fluorescent secondary antibodies also allows detection of two targets with primary antibodies raised in the same host species but without substantial crosstalk between the signals. PSA™ imaging is compatible with:

  • Fluorescent markers and counterstains (e.g. DAPI, Hoechsts)
  • Fluorescent proteins (e.g. GFP, YFP, RFP)
  • Other Styramide™ reagents
  • Other PSA™ imaging kits
  • Tyramide reagents and tyramide imaging kits

iFluor™ 488 PSA™ Kit
(Cat No. 45205)

DAPI
(Cat No. 17507)

iFluor™ 555 PSA™ Kit
(Cat No. 45270)

Merged

Figure 4. Sequential immunostaining of formaldehyde-fixed, paraffin-embedded human lung adenocarcinoma using iFluor™ PSA™ Imaging kits. . EpCam were labeled with rabbit anti-EpCam antibodies and iFluor™ 488 PSA™ Imaging Kit with goat anti-rabbit IgG (Cat No. 45205), followed by washing. Pan-Keratin were labeled with mouse anti-pan Keratin antibodies and iFluor™ 555 PSA™ Imaging Kit with goat anti-mouse IgG (Cat No. 45270). Nuclei were labeled with DAPI (Cat No. 17507). Images were acquired on a confocal microscope.

Flexible Workflow: compatible with IHC, ICC, ISH & flow cytometry

PSA™ imaging technology can be adapted to any application that supports the addition of HRP into its protocol and is compatible with sample types and fluorescence imaging platform commonly used in immunological applications. When combined with conventional IHC, ICC, ISH and FC applications, PSA™ imaging significantly increases detection sensitivity without any loss in image resolution or increase in background noise.

In Situ Hybridization (ISH)

Pan-centromeric staining via in situ hybridization using a biotinylated PNA probe. Jurkat cells were fixed and permeabilized using a standard protocol. Centromere of each chromosome was detected with streptavidin HRP conjugate and visualized with iFluor 488 Styramide reagent. Chromosomes were counterstained with DAPI.

Immunocytochemistry (ICC)

CD45 surface receptor stain of HL-60 cells. Hl-60 Cells were fixed with 4% formaldehyde, permeabilized and labeled with 0.2 µg/mL anti-CD45 primary antibody. Cells were then stained with iFluor™ 647 Styramide™ and the fluorescence image was taken using the Cy5 filter set.

Flow Cytometry

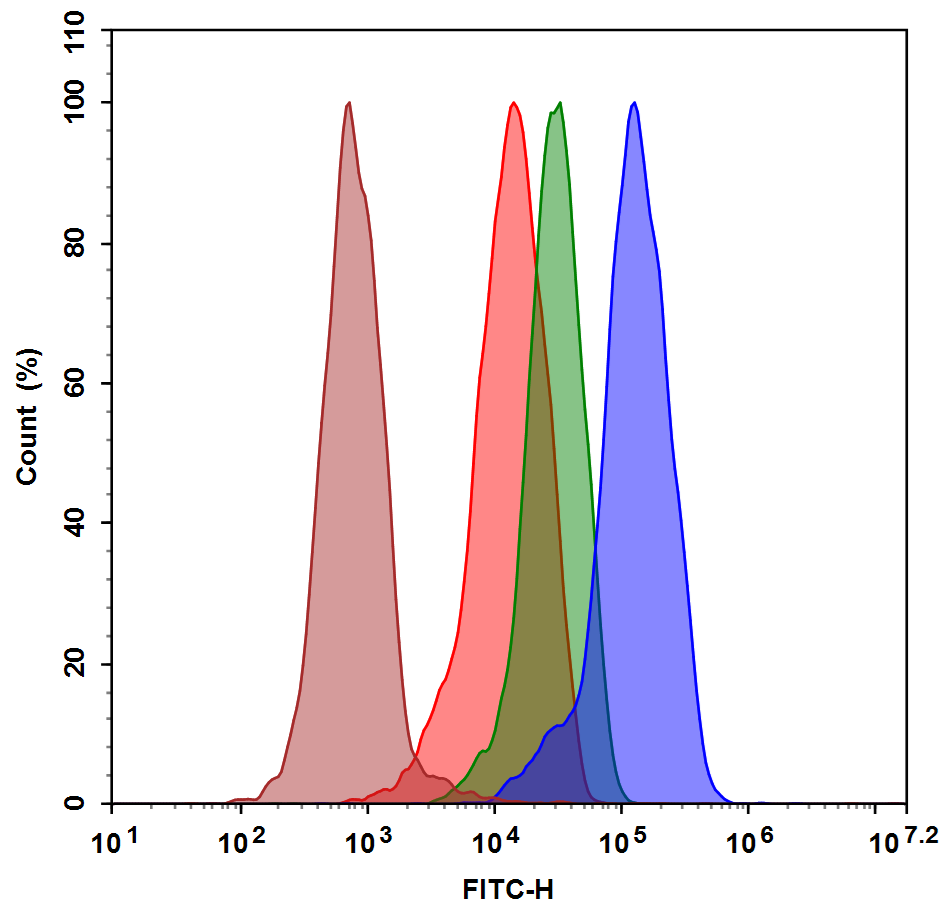

Flow cytometric analysis of pAKT in Jurkat cells using iF488 labeled goat anti-rabbit IgG method, tyramide method, or Styramide method. The Styramide amplification method provides a 10-fold-increase in signal over goat anti-rabbit IgG-iFluor™ 488 direct stain and 5-fold-increase over Alexa Fluor 488 tyramide stain.

PSA™ Imaging Workflow

PSA™ imaging exploits the catalytic activity of horseradish peroxidase (HRP) to generate high-density labeling of a target protein or nucleic acid sequence in situ. Similar to the conventional workflow of IHC, ICC and ISH procedures, PSA™ imaging is easy-to-perform comprising of a few simple processes. In this workflow, the fluorescent secondary antibodies are replaced with poly-HRP secondary antibodies, and the only additional step is to incubate with labeled Styramide™.

  1. Fix, permeabilize and block cells or tissue sample. Incubate sample with unlabeled primary antibody, biotinylated primary antibody or biotinylated nucleic acid probe.
  2. Add HRP-secondary antibody or HRP-streptavidin conjugate.
  3. Add iFluor™ dye Styramide™ working solution, allow for HRP-catalyzed deposition of Styramide™
  4. Mount sample and detect Signal
Figure 5. Workflow for Power Styramide™ Signal Amplification (PSA™). With workflow similar to conventional ICC and IHC methods, PSA™ kits and Styramide™ reagents can achieve sensitive detection of desired targets in a few simple steps.

Additional Resources

Table 1. Properties of Styramide™ reagents For Additional Resources

Styramide™ Mol. Wt. Ex (nm) Em (nm) Filter Set ε¹ Φ²
iFluor™ 350 Styramide™ 931.13 345 442 DAPI 20,000 0.95
iFluor™ 488 Styramide™ 1037.99 491 514 FITC 75,000 0.9
iFluor™ 546 Styramide™ 1326.69 541 557 Cy3/TRITC 100,000 0.67
iFluor™ 555 Styramide™ 1023.15 552 567 Cy3/TRITC 100,000 0.64
iFluor™ 568 Styramide™ 1243.6 568 587 Cy3/TRITC 100,000 0.57
iFluor™ 594 Styramide™ 1341.71 587 603 Cy3/TRITC 180,000 0.53
iFluor™ 647 Styramide™ 1231.63 654 669 Cy5 250,000 0.25
iFluor™ 680 Styramide™ 1151.28 683 700 Cy5 220,000 0.23
iFluor™ 700 Styramide™ 1158.44 690 713 Cy7 220,000 0.23
iFluor™ 750 Styramide™ 1257.67 759 777 Cy7 275,000 0.12
iFluor™ 790 Styramide™ 1525.02 786 811 Cy7 250,000 0.13
  1. ε = molar extinction coefficient at their maximum absorption wavelength (Units = cm-1M-1).
  2. Φ = fluorescence quantum yield in aqueous buffer (pH 7.2).

Table 2. Styramide™ equivalents for common tyramides For Additional Resources

If you are using this tyramide reagent Try this Styramide™ replacement Unit Size | Cat No.
Alexa Fluor® 350 tyramide iFluor™ 350 Styramide™ 100 slides | 45000
Alexa Fluor® 488 tyramide, FITC tyramide iFluor™ 488 Styramide™ 100 slides | 45020
Alexa Fluor® 546 tyramide iFluor™ 546 Styramide™ 100 slides | 45025
Alexa Fluor® 555 tyramide, Cy3 tyramide iFluor™ 555 Styramide™ 100 slides | 45027
Alexa Fluor® 568 tyramide iFluor™ 568 Styramide™ 100 slides | 45030
Alexa Fluor® 594 tyramide iFluor™ 594 Styramide™ 100 slides | 45035
Alexa Fluor® 647 tyramide, Cy5 tyramide iFluor™ 647 Styramide™ 100 slides | 45045
Not Commercially Available iFluor™ 680 Styramide™ 100 slides | 45050
Not Commercially Available iFluor™ 700 Styramide™ 100 slides | 45055
Not Commercially Available iFluor™ 750 Styramide™ 100 slides | 45065
Not Commercially Available iFluor™ 790 Styramide™ 100 slides | 45070

Table 3. Available iFluor™ PSA™ Imaging Kits

iFluor™ PSA Imaging Kit Secondary Antibody-HRP Ex (nm) Ex (nm) Filter Set Unit Size Cat No.
iFluor™ 350 PSA™ Imaging Kit Goat Anti-Mouse IgG-HRP 344 448 DAPI 100 tests 45250
iFluor™ 350 PSA™ Imaging Kit Goat Anti-Rabbit IgG-HRP 344 448 DAPI 100 tests 45200
iFluor™ 488 PSA™ Imaging Kit Goat Anti-Mouse IgG-HRP 491 514 FITC 100 tests 45260
iFluor™ 488 PSA™ Imaging Kit Goat Anti-Rabbit IgG-HRP 491 514 FITC 100 tests 45260
iFluor™ 555 PSA™ Imaging Kit Goat Anti-Mouse IgG-HRP 552 567 Cy3/TRITC 100 tests 45270
iFluor™ 555 PSA™ Imaging Kit Goat Anti-Rabbit IgG-HRP 552 567 Cy3/TRITC 100 tests 45220
iFluor™ 594 PSA™ Imaging Kit Goat Anti-Mouse IgG-HRP 592 619 Cy3/TRITC 100 tests 45280
iFluor™ 594 PSA™ Imaging Kit Goat Anti-Rabbit IgG-HRP 592 619 Cy3/TRITC 100 tests 45230
iFluor™ 647 PSA™ Imaging Kit Goat Anti-Mouse IgG-HRP 649 665 Cy5 100 tests 45240
iFluor™ 647 PSA™ Imaging Kit Goat Anti-Rabbit IgG-HRP 649 665 Cy5 100 tests 45290

Product Ordering Information

Table 4. Ordering Info for PSA Products

Cat# Product Name Unit Size
11061 Azido-Cy5 tyramide 1 mg
11065 Cy3 tyramide 1 mg
11066 Cy5 tyramide 1 mg
11070 AF488 tyramide reagent 200 slides
11075 AF546 tyramide reagent 200 slides
11082 AF594 tyramide reagent 200 slides
45000 iFluor™ 350 Styramide *Superior Replacement for Alexa Fluor 350 tyramide* 100 Slides
45020 iFluor™ 488 Styramide *Superior Replacement for Alexa Fluor 488 tyramide* 100 Slides
45025 iFluor™ 546 Styramide *Superior Replacement for Alexa Fluor 546 tyramide* 100 Slides
45027 iFluor™ 555 Styramide *Superior Replacement for Alexa Fluor 555 tyramide* 100 Slides
45030 iFluor™ 568 Styramide *Superior Replacement for Alexa Fluor 568 tyramide* 100 Slides
45035 iFluor™ 594 Styramide *Superior Replacement for Alexa Fluor 594 tyramide* 100 Slides
45045 iFluor™ 647 Styramide *Superior Replacement for Alexa Fluor 647 tyramide* 100 Slides
45050 iFluor™ 680 Styramide *Superior Replacement for Alexa Fluor 680 tyramide* 100 Slides
45055 iFluor™ 700 Styramide *Superior Replacement for Alexa Fluor 700 tyramide* 100 Slides
45065 iFluor™ 750 Styramide *Superior Replacement for Alexa Fluor 750 tyramide* 100 Slides
45070 iFluor™ 790 Styramide *Superior Replacement for Alexa Fluor 790 tyramide* 100 Slides
45100 iFluor™ 488 tyramide 200 slides
45105 iFluor™ 555 Tyramide 200 Slides
45110 iFluor™ 647 Tyramide 200 Slides
45200 iFluor 350™ PSA™ Imaging Kit with Goat Anti-Rabbit IgG 100 Tests
45205 iFluor 488™ PSA™ Imaging Kit with Goat Anti-Rabbit IgG 100 Tests
45220 iFluor 555™ PSA™ Imaging Kit with Goat Anti-Rabbit IgG 100 Tests
45230 iFluor 594™ PSA™ Imaging Kit with Goat Anti-Rabbit IgG 100 Tests
45240 iFluor 647™ PSA™ Imaging Kit with Goat Anti-Rabbit IgG 100 Tests
45250 iFluor 350™ PSA™ Imaging Kit with Goat Anti-Mouse IgG 100 Tests
45260 iFluor 488™ PSA™ Imaging Kit with Goat Anti-Mouse IgG 100 Tests
45270 iFluor 555™ PSA™ Imaging Kit with Goat Anti-Mouse IgG 100 Tests
45280 iFluor 594™ PSA™ Imaging Kit with Goat Anti-Mouse IgG 100 Tests
45290 iFluor 647™ PSA™ Imaging Kit with Goat Anti-Mouse IgG 100 Tests
45300 Biotin Styramide *Superior Replacement for Biotin Tyramide* 100 Slides
45305 DIG Styramide *Superior Replacement for DIG tyramide* 100 Slides
45310 DNP Styramide *Superior Replacement for DNP tyramide* 100 Slides
