Are you one of the many labs working to develop VHH antibodies (nanobodies)? Our COO Dr Dave Fancy introduces JIR’s suite of Anti-Camelid Antibodies that can be used to enhance your nanobody research and development process.



From monitoring the post immunisation immune response, expression screening of clones by Western blotting and ELISA, through to imaging and counting by immunofluorescence or flow cytometry,  JIR’s Anti-Alpaca antbodies are a comprehensive tool kit to advance your development goals.

At Jackson ImmunoResearch, our mission is to develop the widest range of high quality secondary antibodies for the life science community. To support the growing adoption of camelid-derived heavy chain variable domain (VHH) technologies in a multitude of applications, including next-generation immunotherapeutics, medical imaging, analytical and diagnostic assay development and research discovery, JIR offers three new secondary antibody specificities for detection and quantification of camelid antibodies.


Anti-Alpaca Secondary Antibodies


Unconjugated
Horseradish
Peroxidase
Alkaline
Phosphatase
Biotin-SP
(long spacer)
DyLight™
405
A=400, E=421
Alexa Fluor®
488
A=493, E=519
Fluorescein
(FITC)
A=492, E=520
AffiniPure ANTI-ALPACA
Goat Anti-Alpaca IgG (H+L)
1.0 mg
128-005-003
£125.00
1.0 ml
128-035-003
£183.00
1.0 ml
128-055-003
£215.00
1.0 ml
128-065-003
£175.00
1.0 mg
128-475-003
£182.00
1.0 mg
128-545-003
£184.00
1.0 mg
128-095-003
£175.00
Goat Anti-Alpaca IgG (H+L)
(min X Bov, Hu, Ms, Rb, Rat Sr Prot)
1.0 mg
128-005-160
£186.00
0.5 ml
128-035-160
£237.00
0.5 ml
128-055-160
£227.00
0.5 ml
128-065-160
£228.00
0.5 mg
128-475-160
£275.00
0.5 mg
128-545-160
£283.00
0.5 mg
128-095-160
£258.00
Goat Anti-Alpaca IgG, subclasses 2+3 specific
(min X Bov, Hu, Ms, Rb, Rat Sr Prot)
0.5 mg
128-005-229
£278.00
0.25 ml
128-035-229
£355.00
0.25 ml
128-055-229
£339.00
0.25 ml
128-065-229
£340.00
0.25 mg
128-475-229
£415.00
0.25 mg
128-545-229
£426.00
0.25 mg
128-095-229
£386.00
Cyanine
Cy™3
A=550, E=570
R-Phycoerythrin
A=488, E=580
Rhodamine
Red™-X (RRX)
A=570, E=590
Alexa Fluor®
594
A=591, E=614
Alexa Fluor®
647
A=651, E=667
Cyanine
Cy™5
A=650, E=670
AffiniPure ANTI-ALPACA
Goat Anti-Alpaca IgG (H+L)
1.0 mg
128-165-003
£175.00
1.0 mg
128-295-003
£175.00
1.0 mg
128-585-003
£184.00
1.0 mg
128-605-003
£184.00
Goat Anti-Alpaca IgG (H+L)
(min X Bov, Hu, Ms, Rb, Rat Sr Prot)
0.5 mg
128-165-160
£258.00
0.5 ml
128-115-160
£322.00
0.5 mg
128-295-160
£258.00
0.5 mg
128-585-160
£283.00
0.5 mg
128-605-160
£283.00
0.5 mg
128-175-160
£258.00
Goat Anti-Alpaca IgG, subclasses 2+3 specific
(min X Bov, Hu, Ms, Rb, Rat Sr Prot)
0.25 mg
128-165-229
£386.00
0.25 ml
128-115-229
£386.00
0.25 mg
128-295-229
£386.00
0.25 mg
128-585-229
£426.00
0.25 mg
128-605-229
£426.00
0.25 mg
128-175-229
£386.00

VHH antibodies

Antibodies derived from camelid species such as alpaca and llama have unique qualities that have been exploited for creation of engineered antibodies. Since the first isolation of heavy chain antibodies from camel in 1989, researchers have focused on the 12-15 kDa antigen-binding VHH domain, commonly called the nanobody†, as a model for recombinant antibody production. Several distinguishing characteristics of VHH antibodies are their ability to cross the blood-brain barrier and access other remote locations, and to bind antigen tightly through a long CDR3 loop.

Other advantages of VHH antibodies are that they are easy to clone and produce at high levels in recombinant systems, are stable to heat and pH extremes, and are generally quite soluble. Given their unique properties, VHH antibodies are being used in a variety of applications including diagnostic kits to detect small molecules, as biosensors and in numerous medical applications such as cancer treatment. VHH antibodies are powerful tools for discovery.


Non-canonical immunoglobulins

Alongside the conventional IgG1, camelids (alpaca, llama, camel, vicuna and guanaco) produce two non-canonical immunoglobulins. IgG2 and IgG3 are known as heavy chain (or heavy chain-only) antibodies. They have single domain binding sites consisting of monomeric variable domains (VHH), and do not contain CH1 domains or light chains (Figure 1).

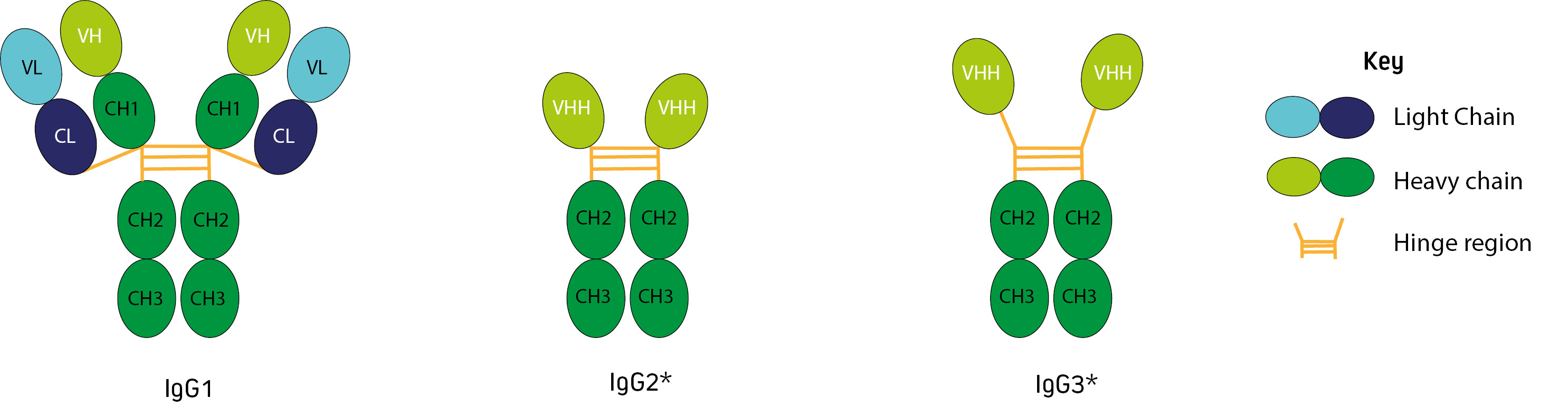

Camelid Immunoglobulins Figure 1: Alpaca and llama immunoglobulins (*In camels IgG2 is described as having the longer hinge (Maass et al., 2007)).

Detection of IgG subclasses by Western blot

Jackson ImmunoResearch Anti-Alpaca (H+L) and Anti-Alpaca (2+3) are suitable for detection of both alpaca and llama IgG. Figures 2 and 3 detail the detection of IgG subclasses from both species by Western blot.

IgG subclasses purified from serum using a method from Maass et al. (2007) were separated by SDS/PAGE under non-reducing conditions. Gels were blotted onto nitrocellulose membranes and probed with HRP-conjugated antibody at a 1:20,000 dilution (see below). Proteins were detected using chemiluminescent substrate and imaged for 5 min

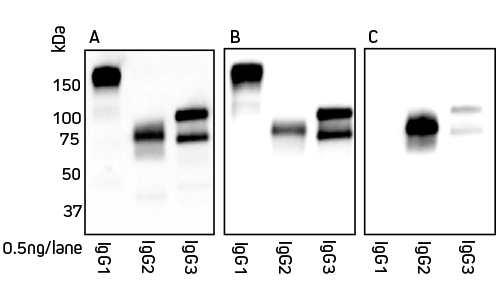

Figure 2: Detection of alpaca IgG subclasses by Western blot. Blots were probed with secondary antibody as follows: Panel A, Peroxidase AffiniPure Goat Anti-Alpaca IgG (H+L) 128-035-003; Panel B, Peroxidase AffiniPure Goat Anti-Alpaca IgG (H+L)(min X Bov, Hu, Ms, Rb, Rat Sr Prot) 128-035-160; Panel C, Peroxidase AffiniPure Goat Anti-Alpaca IgG, subclasses 2+3 specific (min X Bov, Hu, Ms, Rb, Rat Sr Prot) 128-035-229.

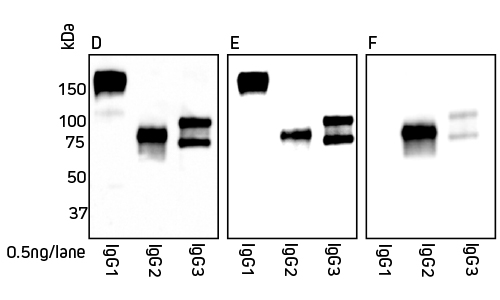

Figure 3: Detection of llama IgG subclasses by Western blot. Blots were probed with secondary antibody as follows: Panel D, Peroxidase AffiniPure Goat Anti-Alpaca IgG (H+L) 128-035-003; Panel E, Peroxidase AffiniPure Goat Anti-Alpaca IgG (H+L)(min X Bov, Hu, Ms, Rb, Rat Sr Prot) 128-035-160; Panel F, Peroxidase AffiniPure Goat Anti-Alpaca IgG, subclasses 2+3 specific (min X Bov, Hu, Ms, Rb, Rat Sr Prot) 128-035-229

Serum conversion kinetics

The development of engineered VHH antibodies can be initiated by immunizing an alpaca or llama with a protein of interest. Monitoring of the immune response enables a researcher to harvest PBMCs at an optimal time, after in vivo maturation has resulted in a diverse repertoire of specificities.

JIR Anti-Alpaca secondary antibodies can be used to distinguish between total IgG and heavy chain antibodies in camelid serum during the immunization regimen. The heavy chain (subclasses 2 and 3) antibody response may mature differently from total IgG, and harvest of PBMCs producing VHH (from heavy chain antibodies) can be optimized.

Serum conversion (antigen-specific antibody titers) can be monitored by ELISA or by flow cytometry/FACS (Pardon et al., 2014). JIR Anti-Alpaca IgG (H+L) can be used to monitor pre-immune and post-immune serum conversion. JIR Anti-Alpaca IgG2+3 is ideally suited to measure heavy chain antibody serum conversion to enable optimal timing of PBMC harvest for VHH library construction. As shown in figure 4, generation of heavy chain antibodies may not be predicted by total IgG readings.

After immunization with the protein of interest, ELISA was used to characterize the specific antibody response. The protein of interest was coated onto the ELISA plate, antiserum was used as the primary antibody source, and peroxidase-conjugated secondary antibody 128-035-160 or 128-035-229 was used to detect total IgG or IgG2+3, respectively.



Serum timecourse
Figure 4a: Serum conversion kinetics. Products 128-035-160 and 128-035-229 were used to measure antigen-specific antibody titers in alpaca serum over the course of a typical immunization/boost schedule.
Figure 4b: Percentage of IgG2+3 compared to total IgG by ELISA.

Total IgG titer might suggest a harvest point at 150 days, but the IgG2 and 3 response is not optimal until after 300 days post immunization.



We are delighted to offer 3 new specificities to our range!

Anti-Alpaca IgG (H+L)

JIR’s Anti-Alpaca IgG (H+L) antibodies recognize total IgG from both alpaca and llama.



Secondary Antibody Code
AffiniPure Goat Anti-Alpaca IgG (H+L)** 128-005-003
AffiniPure Goat Anti-Alpaca IgG (H+L)(min X Bov, Hu, Ms, Rb, Rat Sr Prot)** 128-005-160

Anti-Alpaca IgG, subclasses 2+3 specific

This antibody enables detection of the heavy chain subclasses 2 and 3 from both alpaca and llama serum and PBMCs, without recognizing IgG1.



Secondary Antibody Code
AffiniPure Goat Anti-Alpaca IgG, subclasses 2+3 specific (min X Bov, Hu, Ms, Rb, Rat Sr Prot)** 128-005-229
**These antibodies react primarily with the Fc region, and are not recommended for detection of VHH antibodies (nanobodies†).

Conjugate Options

  • Unconjugated
  • Horseradish Peroxidase
  • Alkaline Phosphatase
  • Biotin-SP
  • DyLight™ 405
  • Alexa Fluor® 488
  • FITC
  • Cy™ 3
  • Alexa Fluor® 594
  • Rhodamine Red-X™
  • Alexa Fluor® 647
  • Cy™ 5

References:

For a detailed history of Camelid antibodies

Arbabi-Ghahroudi, M. (2017). Camelid Single-Domain Antibodies: Historical Perspective and Future Outlook. Front. Immunol. 8, 1-8.

Daley, L.P., Gagliardo, L.F., Duffy, M.S., Smith, M.C., and Appleton, J.A. (2005). Application of Monoclonal Antibodies in Functional and Comparative Investigations of Heavy-Chain Immunoglobulins in New World Camelids. Clin. Diagn. Lab Immun. 12, 380-386.

Maass, D.R., Sepulveda, J., Pernthaner, A., and Shoemaker, C.B. (2007). Alpaca (Lama pacos) as a convenient source of recombinant camelid heavy chain antibodies (VHHs). J. Immunol. 324, 13–25.

Pardon, E., Laeremans, T., Triest, S., Rasmussen, S.G.F., Wohlkönig, A., Ruf, A., Muyldermans, S., Hol, W.G.J., Kobilka, B.K., and Steyaert, J. (2014). A general protocol for the generation of Nanobodies for structural biology. Nat. Protoc. 9, 674-693.

Wagner, H.J., Sehrle, S. Weiss, E. Cavallari, M., and Weber, W. (2018). A Two-Step Approach for the Design and Generation of Nanobodies. Int. J. Mol. Sci. 19, 1-16.

† Nanobody and Nanobodies are registered trademarks of Ablynx N.V.
