Brilliant Violet

BD Brilliant Violet™ 421 and 480 Conjugates

Add more color to your immunofluorescence with our NEW Brilliant Violet™ conjugates

Brilliant Violet 421 and Brilliant Violet 480 conjugated secondary antibodies allow you to add more colors to your multiple labeling assays in the violet-blue region of the spectrum.

Double immunofluorescence of Hep-2 cells using Brilliant Violet 421 and 480 conjugated secondary antibodies. Nuclei counterstained with DRAQ5.

Add more colors to multiple labeling assays with Brilliant Violet 421™ and Brilliant Violet 480™ conjugated secondary antibodies. When combined with Alexa Fluor® 488Rhodamine-Red™-X, and Alexa Fluor® 647 conjugates, effective 5-color fluorescent labeling is possible.

If nuclear counterstaining is desired, 4-color antibody staining is possible using Brilliant Violet 421Brilliant Violet 480Alexa Fluor® 488 and Rhodamine Red™-X. Switching the nuclear stain from DAPI (emission in the blue region) to DRAQ5™ (which has red emission) frees the violet-blue region of the spectrum to accommodate the two Brilliant Violet dyes. DRAQ5’s excitation and emission profiles overlap those of Alexa Fluor 647.

These three options are summarized in the table below.

Channel Blue Cyan Green Orange Red
Option 1 DAPI BV480 Alexa Fluor 488 RR-X Alexa Fluor 647
Option 2 BV421 BV480 Alexa Fluor 488 RR-X DRAQ5
Option 3 BV421 BV480 Alexa Fluor 488 RR-X Alexa Fluor 647

We offer a range of secondary antibodies that are recommended for multiple labeling due to their minimal cross-reactivity, ( See our multiple labeling guidelines for more information).

Available Target Specificities for Multiple Labeling (Designated ML* in product tables)

  • Chicken IgY (IgG)
  • Goat IgG
  • Guinea Pig IgG
  • Human IgG
  • Mouse IgG, Fcγ Fragment specific
  • Mouse IgG, Fcγ subclass specific (1 / 2a / 2b / or 3)
  • Mouse IgM
  • Rabbit IgG
  • Rat IgG
  • Rat IgG, Fcγ Fragment specific
  • Rat IgM
  • Sheep IgG

Excitation and Emission characteristics

Excitation Peak (nm) Emission Peak (nm)
Brilliant Violet 421™ 407 421
Brilliant Violet 480™ 436 478

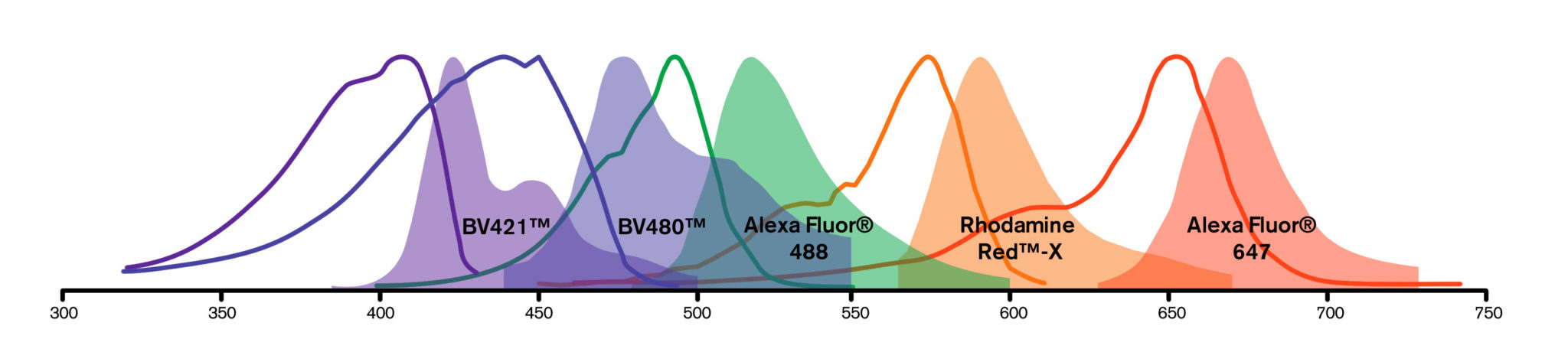

Excitation and emission curves for BV 421™, BV 480™, Alexa Fluor ® 488, Rhodamine Red™-X, and Alexa Fluor® 657.

DRAQ5 can be used as a nuclear stain in place of Alexa Fluor 647.


Brilliant Violet Dyes

BD Brilliant Violet polymer chains can be considered as a collection of optical segments, each with the ability to absorb light and emit fluorescence signal. This results in materials that have a bright fluorescence signal for better resolution and sensitivity.

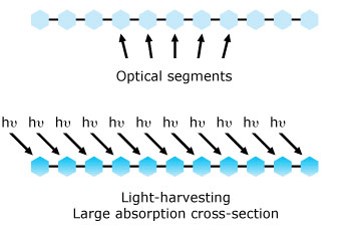

Light harvesting base polymers have multiple optical segments that can emit for fluorescence detection.


Recommended Filter Sets

Channel Fluorophore Excitation (nm) Emission (nm) Chroma Filter Set
Blue BV421™ 407 421 49027
Cyan BV480™ 439 477 49302 or 49001

For more information on these filter sets, please go to the Chroma website.

Spectral properties

Fluorophore Extinction co-efficient (M 1 cm1) Quantum Yield (ɸF)
BV421™ 2587000 0.91
BV480™ 1416000 0.81

Brilliant Violet™ is a trademark of Sirigen Inc., a Becton, Dickinson and Company affiliate.
